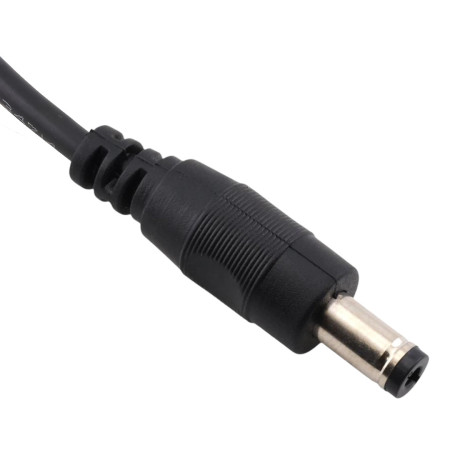

DC power connector 5.5×2.1 mm with 15cm cable

The DC power connector with attached wire is designed for quick connection and power supply of low-voltage DC devices without the need for soldering directly to the connector. The product is available in male (DC plug) and female (DC jack) versions for common 5.5×2.1 mm power interface, typically used in LED lighting and CCTV applications.

Technical specifications

• Connector type: DC power connector 5.5×2.1 mm
• Variants: male / female
• Cable length: 15 cm
• Wire cross-section: 22 AWG (0.35mm²)
• Wire construction: 17×0.14
• Conductor material: copper
• Insulation: PVC
• Color: black
• Nominal values (according to documents): 300 V / 3 A
• Temperature resistance (according to documents): 80 °C

Functions and features

• Standard DC size 5.5×2.1 mm for compatibility with common power adapters and devices
• Pre-assembled cable for easy connection to terminal blocks, distribution boards or custom assemblies
• Tinned copper conductor for stable electrical contact and good solderability of the conductor ends
• PVC insulation for mechanical protection of conductors in normal installation conditions

Ideal for

• Power supply for LED strips and LED modules
• CCTV cameras and accessories with DC power supply
• Service replacement of damaged DC connectors on the cable
• Prototyping and rapid interconnection of low-voltage DC devices

Package contents

• 1× DC connector with cable (variant of choice: male or female), length 15 cm

Why choose this product?

• Clearly defined 5.5×2.1 mm dimension for common DC power applications
• Practical design with cable for quick integration into the installation
• Specified wire 22 AWG and wire material (tinned copper) according to the documents

Installation and operating instructions

• Before connecting, verify that the connector size (5.5×2.1 mm) matches the counterpart of the device/source.
• Verify power polarity and wire connections according to your application requirements
• We recommend terminating the ends of the wires with a suitable ferrule or soldering them depending on the type of connection.
• Provide cable strain relief to prevent stress on the connection

Safety notice

• The product is intended for DC power applications; always verify voltage and current compatibility with the connected device before use.
• Incorrect polarity or overloading may result in damage to the device or wiring.
• Perform installation with the power disconnected.
