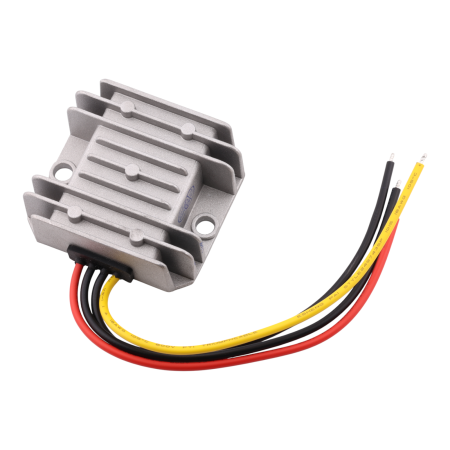

Voltage converter from 20-120V to 12V, 10A, 120W, IP68

22.74 €

22.74 € Tax excluded

Including 0.03 € for ecotax

22.74 € without VAT
check In stock
datasheet

High quality DC/DC voltage converter from 20-120V DC to 12V DC max. 10A.

Input voltage: 20-120V DC
Output voltage: 12V DC, max. 10A
Efficiency: 91.3%
No-load current consumption: max. 48mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -30~+80°C
Ambient humidity: 0~95%
Protection: IP68
Size: 66x57x22mm
Weight: 135g

AMPUL
AM3290
Input voltage
20-120 V DC
Output voltage
12 V DC
Output current
10 A
Output power
120 W
Waterproof grade
IP68
Lifetime
100,000 hours
