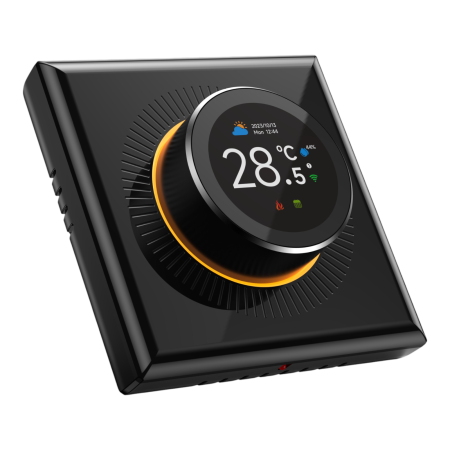

Smart Wifi thermostat for electric underfloor heating, 16A

Smart WiFi thermostat with rotary control is designed to control electric underfloor heating. It allows you to set the temperature directly on the device and remotely via a mobile application. The design with a circular display shows the current temperature and heating status. The thermostat is suitable for installation in homes, offices and other interior spaces with standard electrical installations.

Technical specifications

• Heating system type: electric underfloor heating
• Supply voltage: 95-240V AC, 50-60Hz
• Maximum relay load: 16 A
• Temperature setting range: 5-35°C
• Temperature measurement range: 5–99 °C
• Control accuracy: ±1 °C
• Thermostat power consumption: < 1.5 W
• Control type: rotary knob
• Temperature sensor: internal + external NTC sensor
• Protection: IP20
• Material: flame retardant PC plastic
• Front panel dimensions: 86 × 86 mm
• Installation depth: 41 mm
• Dimensions of the installation part: 60 × 50 mm
• Weight: 261g
• Color options: white, black

Functions and features

• Built-in WiFi module for remote control via mobile app
• Color display showing current temperature and heating status
• Rotary knob for direct and quick adjustment
• Support for external floor temperature sensor
• Switching capacity 16 A for electric heating circuits
• Installation in standard electrical installation boxes
• Design suitable for integration into smart home systems with WiFi control

Ideal for

• Electric underfloor heating in bathrooms
• Electric underfloor heating in living rooms
• Apartments and family houses
• Offices and hotel rooms
• Reconstruction and new installations

Package contents

• WiFi thermostat 16 A
• External floor temperature sensor NTC
• Mounting accessories

Why choose this product?

• Designed for direct control of electric underfloor heating with a load of up to 16 A
• Combination of local control and remote access via WiFi
• Support for internal and external temperature measurement
• Control accuracy ±1 °C
• The construction dimensions correspond to common installation boxes in the EU
• Available in two color options to match your interior

Installation and operating instructions

• The thermostat is designed for fixed installation in an electrical installation box.
• For proper regulation of underfloor heating, connect an external NTC sensor according to the product specification.
• Before commissioning, check that the current load of the heating circuit does not exceed 16 A.
• Install the device only in a dry indoor environment within the IP20 protection range.

Safety notice

• The device operates with a voltage of 95–240 V AC. The power circuit must be disconnected from the mains before assembly or disassembly.
• Installation and connection should be carried out by a qualified person.
• Incorrect wiring may cause electric shock, short circuit or damage to the thermostat and heating circuit.
• Do not exceed the maximum relay load of 16 A.
• The thermostat is not intended for outdoor use or in environments with increased humidity without adequate protection.
