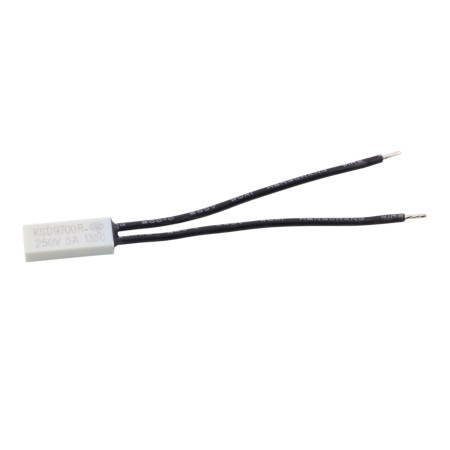

KSD9700 Thermostat 250V/5A NC, Plastic Encapsulated

Thermostat KSD9700 250V/5A, NC, plastic

Fully encapsulated industrial quality thermostat. Opens when the specified temperature is reached. At lower temperatures, the thermostat is closed.

Action temperature:

0.85 €

0.85 € excl. VAT

0.854112 Tax excluded

In stock

Quantity:

Download PDF

Description

Fully encapsulated industrial quality thermostat. Opens when the specified temperature is reached. At lower temperatures, the thermostat is closed.

Applicable to all kinds of home appliances and electronic products. For example, electric motors, fluorescent lamps, battery chargers, transformers, solenoids, heaters, heating mats and others.

NC circuit (normally closed)

automatic reset
working voltage 250V AC/ 125V AC
max. current 5A

response speed ≤1°C/min

circuit resistance: ≤50mΩ

insulation resistance: ≥100 MΩ

Lifespan: up to 10,000 switching cycles
plastic case

outlet location: radial
size: 20x7.4x3.8 mm
cable length: 70 mm
price for 1 piece

Operating temperature	Reset temperature	Operating temperature	Reset temperature
25 ±5 °C	≥15°C	105 ±5 °C	75±15 °C
30 ±5 °C	≥20°C	110 ±5 °C	75±15 °C
35 ±5 °C	≥25°C	115 ±5 °C	80±15 °C
40 ±5 °C	≥30°C	120 ±5 °C	85±15 °C
45 ±5 °C	≥33°C	125 ±5 °C	85±15 °C
50 ±5 °C	≥35°C	130 ±5 °C	90±15 °C
55 ±5 °C	42 ±6 °C	135 ±5 °C	95±15 °C
60 ±5 °C	48 ±10 °C	140 ±5 °C	100±15 °C
65 ±5 °C	48 ±10 °C	145 ±5 °C	100±15 °C
70 ±5 °C	50 ±12 °C	150 ±5 °C	105±15 °C
75 ±5 °C	53 ±14 °C	155 ±5 °C	110±15 °C
80 ±5 °C	55 ±15 °C	160 ±5 °C	115±15 °C
85 ±5 °C	60±15 °C	165 ±5 °C	115±15 °C
90 ±5 °C	65±15 °C	170 ±5 °C	120±15 °C
95 ±5 °C	70±15 °C	175 ±5 °C	125±15 °C
100 ±5 °C	70±15 °C	180 ±5 °C	130±15 °C
