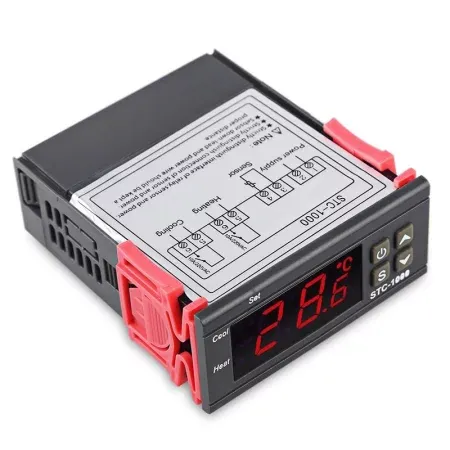

Digital thermostat STC-1000 with external sensor -50°C- 99°C, 12V

A simple digital thermostat with two output relays allows temperature control from -50°C ~ 100°C with 0.1°C resolution. For example, heating can be connected to one output and cooling to the other. Both heating and cooling will then maintain the set temperature on the thermostat. The thermostat includes a resistive temperature sensor in a waterproof stainless steel housing with IP68 protection. Power supply 12V DC.

Power consumption: 3W

Adjustable temperature: -50°C ~ 99.9°C (0.1°C resolution)

Temperature measurement accuracy: ±1%

Temperature sensor: resistive NTC, 10kΩ, 0.5%

Switching contact: 250V AC 10A (under resistive load!)

Relay contact type: switching

Operating temperature: 0 ~ 60°C

Display color: red

Dimensions: 75 x 34.5 x 85mm

Dimensions for panel hole: 71 x 29mm

Weight: 138g

Accessories: waterproof NTC sensor, 1m
