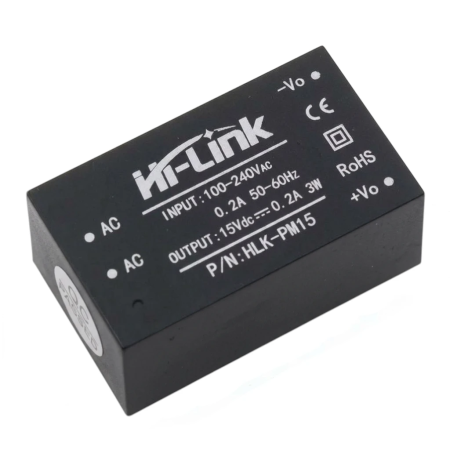

Hi-Link HLK-PM15 15V 0.2A 3W AC-DC PCB module
zoom_out_map
chevron_left chevron_right

Power supply 15V, 0.2A, 3W, HLK-PM15

5.52 €

5.52 € excl. VAT

5.518588 Tax excluded

Including 0.03 € for ecotax

check In stock
Download PDF

The Hi-Link HLK-PM15 AC-DC module is used to directly convert AC mains voltage to a stabilized DC voltage of 15 V. It is intended for installation in electronic devices, control circuits and power supply parts of compact devices where a small isolated power supply with board mounting is required.

Technical specifications

  • Model: HLK-PM15
  • Type: AC-DC power module
  • Output voltage: 15V DC
  • Output current: 0.2A
  • Rated power: 3W
  • Input voltage: 100-240V AC
  • Input voltage range: 90-264V AC
  • Input frequency: 50-60 Hz
  • Maximum input current: 0.2 A
  • Number of outlets: 4
  • Pin 1: AC
  • Pin 2: AC
  • Pin 3: -Vo
  • Pin 4: +Vo
  • Module dimensions: 34 × 20.2 × 15.4 mm
  • Weight: up to 20 g

Functions and features

  • Isolated AC-DC mains converter in a compact molded case.
  • Wide range input for AC power supply.
  • Direct mounting on the printed circuit board using leads.
  • Integrated output short circuit protection.
  • Integrated output overcurrent protection.
  • Design designed for installation in equipment with limited space.

Ideal for

  • Built-in power supply for control and switching circuits.
  • Power supply parts for home and industrial electronics.
  • Automation modules, measuring equipment and auxiliary power supply branches of the device.
  • Projects where conversion of mains voltage to 15 V DC in a compact module is required.

Package contents

  • 1x Hi-Link HLK-PM15 power module

Why choose this product?

  • Clearly defined output parameters of 15 V DC and 0.2 A.
  • Wide input mains voltage range for universal use.
  • Compact design suitable for installation into equipment.
  • Simple electrical connection via four outlets with separate AC input and DC output.
  • Integrated protection functions important for the operation of the power section.

Installation and operating instructions

  • Install the module only in equipment with adequate insulation and protection against touching live parts.
  • When designing the circuit, it is necessary to correctly distinguish between the AC input terminals and the +Vo and -Vo output terminals.
  • Mounting on a board and connecting to mains voltage requires professional competence.
  • When operating, ensure conditions appropriate to the built-in power module and do not exceed the rated output power.

Safety notice

  • The product operates on a mains voltage of 100-240 V AC. Improper connection may result in electric shock, damage to the device or a short circuit.
  • The module is not intended for manipulation under voltage.
  • The device must be disconnected from the power supply before installation, maintenance or measurement.
  • Do not cover the module with thermal insulation materials and ensure safe operation within the design of the device.
  • Use the product only as a built-in power module in the corresponding electrical equipment.
OEM
AM4372
85044090
Input voltage
100-240 V AC, 50/60 Hz
Output voltage
15 V DC
Output current
0,2 A
Output power
3 W
Waterproof grade
IP20

Introduction

This manual provides general guidelines for the installation and maintenance of switched-mode power supplies. It is important to follow all safety instructions and, if necessary, consult specific instructions with the seller.

1. Safety Guidelines

  • Professional Installation – The installation and maintenance of the power supply should be performed by qualified personnel with appropriate knowledge and experience in the field of electrical engineering.
  • Disconnect from the Network – Before starting any work on the power supply, always disconnect the device from the electrical network and ensure that it cannot be inadvertently connected.
  • Protective Equipment – When handling the power supply, use appropriate personal protective equipment, such as insulating gloves and safety glasses.
  • Grounding – Ensure that the power supply is properly grounded to guarantee the safety and proper functioning of the device.

2. Installation of the Power Supply

  • Placement – Install the power supply in a dry, well-ventilated area protected from direct sunlight, humidity, and extreme temperatures.
  • Mounting – Secure the power supply to a solid surface using suitable mounting hardware to ensure stability and minimize vibrations.
  • Cooling Space – Ensure there is sufficient space around the power supply for heat dissipation and proper ventilation to prevent overheating of the device.

3. Electrical Connection

  • Input Connection – Connect the power supply to the electrical network according to the following designations:
    • L (Live): Phase conductor (usually brown or black)
    • N (Neutral): Neutral conductor (usually blue)
    • Ground (Grounding symbol): Protective conductor (usually green-yellow)
  • Output Connection – The power supply may have one or more output terminals labeled as V+ and V-. If multiple output terminals are available and full power is required, these outputs must be connected in parallel to ensure an even current distribution.

4. Maintenance of the Power Supply

  • Regular Inspections – Perform regular visual inspections of the power supply to detect any signs of damage, such as overheating, corrosion, or loose connections.
  • Cleaning – Keep the power supply clean and free of dust. Always disconnect the device from the network before cleaning. Use a dry or slightly damp cloth for cleaning. Do not use aggressive cleaning agents.
  • Ventilation Check – Ensure that the ventilation openings are not blocked and that any fans (if present) are functioning properly.
  • Functionality Testing – Regularly test the output voltage and current to ensure the proper functioning of the power supply.

5. Warnings

  • Risk of Electric Shock – Power supplies operate with high voltage, which can cause serious injury or death. Always adhere to safety instructions and procedures.
  • Repairs – Any repairs should only be performed by qualified personnel. Do not attempt repairs without the necessary qualifications.
  • Replacement of Components – When replacing components, only use original spare parts recommended by the manufacturer.

By following the above guidelines, you ensure the safe and reliable operation of the switched-mode power supply.

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
