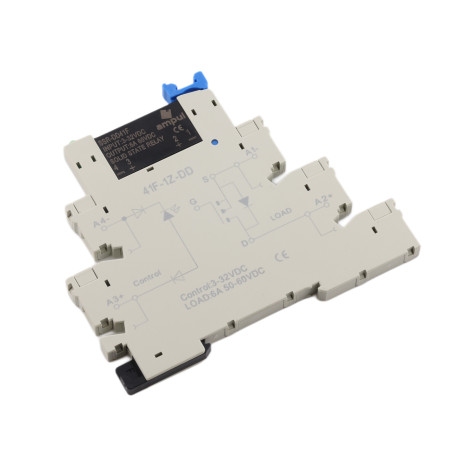

Contactless relay SSR DD on DIN, DC-DC, 3-32VDC/5-60VDC

SSR (Solid State Relay) is an electronic relay with no moving parts that is used to control electrical circuits. Unlike traditional electromechanical relays that use an electromagnetic field to control contacts, SSR uses semiconductor elements such as transistors, thyristors or triacs to control electrical circuits. SSRs can be used to control power devices such as lights, heating systems, motor controllers, electric pumps and other electronic devices that require switching or regulating high power. SSRs are popular for their reliability, high switching speed, quiet operation and easy integration with other electronic components.

Relay triggering indication via LED

DIN rail mounting

Max. switching voltage: 5-60VDC

Max. switching current: 6A

Off time: ≤10ms

Voltage drop: ≤1.5V

Dimensions: 58.4x45x22mm

Working temperature: -30 - +75°C

Insulation resistance: 1000MOhm

Control current: 25mA

Weight: 28g
