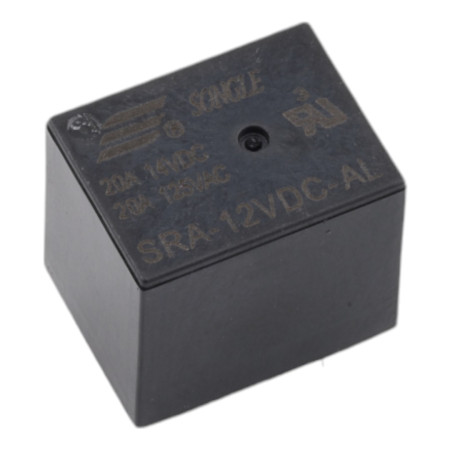

SRA-12VDC-AL Relay 20A 12V DC High-Quality
zoom_out_map
chevron_left chevron_right

Relay SRA-12VDC-AL, 12V DC/14V DC 20A

1.43 €

1.43 € excl. VAT

1.434907 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Industrial quality fully encapsulated changeover contact relay.

Contact type: changeover
Maximum contact current: 20A
Maximum contact voltage: 125V AC / 14V DC
Consumption: 0.60W
Coil resistance: 240Ω
Coil voltage: 12V

Dimensions: 16 x 12.4 x 17.2mm

Songle
AM2606
85364190
Voltage
12 V DC
Waterproof grade
IP65
Number of pins
4-pin
Max. switching current
20 A
Max. switching voltage
125V AC /14 V DC

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
