Infrared barrier, sensor for garage doors and gates

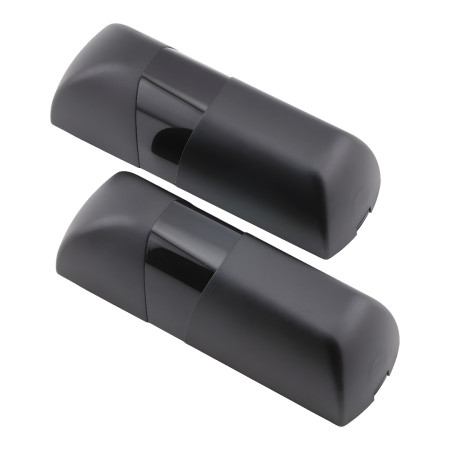

The YET609 infrared sensor serves as a safety element for automatic gates, garage doors, sliding or rolling doors. When the beam is interrupted, it detects a person or obstacle and prevents the system from closing. It is suitable for outdoor and indoor use due to its durable construction, reliable operation and easy installation.

Technical specifications

• Model: YET609
• Supply voltage: DC/AC 12-24 V
• Consumption: TX 30 mA, RX 15 mA
• IR beam wavelength: 940 nm
• Detection distance: 15-20 m
• Output type: relay contact (max. 1 A / 36 V)
• Material: ABS plastic
• Color: black
• Operating temperature: –20°C to +70°C
• Recommended installation height: 20-40 cm above the ground
• Sensor dimensions: 49.2 × 76 × 21.6 mm
• Weight: 120 g
• Cover: waterproof design

Functions and features

• Reliable detection of beam interruptions using infrared technology.
• Suitable for both domestic and industrial applications.
• Durable waterproof construction for outdoor use.
• Low energy consumption.
• Relay output suitable for most gate control units.
• Easy to mount on a wall or door frame.

Ideal for

• Automatic garage doors (wing, sliding, sectional, roller)
• Entrance gates
• Industrial door systems
• Security of entrances and access points

Package contents

• 1× transmitter (TX)
• 1× receiver (RX)
• Mounting material
• User manual

Why choose this product?

The YET609 offers stable performance, reliable detection and weather resistance. It is an ideal choice for gate and gate security systems due to its easy installation and wide compatibility with most automatic operators. It is a cost-effective and high-quality solution to enhance the security of your operation or home.
