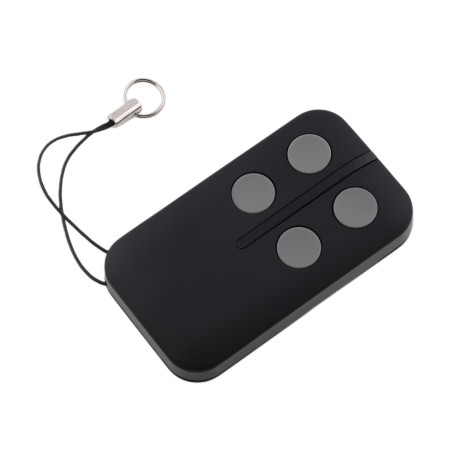

Universal Garage Door Remote, Black, 260-868 MHz, 4-Device
zoom_out_map
chevron_left chevron_right

Universal garage door remote control, 260 to 868 MHz, black

Universal remote control with a frequency of 260 to 868 MHz. Suitable for garage doors, rolling gates, shading technology. Replication of fixed and rolling code.

17.08 €

17.08 € excl. VAT

17.082231 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Universal remote control designed for garage doors, sliding gates and other automation systems. It supports both fixed and rolling code, making it compatible with most common systems on the market and allows you to control up to 4 different devices.

Technical specifications

  • Frequency: 260-868 MHz (multi-band frequency support - e.g. 287 MHz, 315 MHz, 390 MHz, 433 MHz, 868 MHz)
  • Compatibility: fixed and rolling code
  • Range: up to 200 m (in open space)
  • Protection: IP22
  • Power supply: CR2032 battery (included)
  • Material: ABS plastic
  • Dimensions: 67 × 39 × 12 mm
  • Weight: 32g
  • Color: Black

Functions and features

  • Universal design compatible with up to 98% of remote controls on the market.
  • Possibility to pair up to 4 different devices – 4 independent buttons.
  • Replication of fixed and rolling code.
  • Suitable for brands such as Somfy, Hörmann, Nice, Came and many others.
  • Compact dimensions and durable ABS body.
  • Includes a carabiner for easy hanging on keys.

Ideal for

  • Garage doors and sliding or swing gates.
  • Barriers, travel mechanisms and shading technology.
  • Replacement of original controllers of various brands.
  • Users who want one controller for multiple devices.

Package contents

  • 1× universal remote control
  • 1× CR2032 battery
  • 1× pendant

Why choose this product?

  • Wide compatibility thanks to multi-band operation 260-868 MHz.
  • Support for most common drive brands and types.
  • Possibility to control up to 4 devices with one remote control.
  • Compact dimensions, modern design and low weight.
  • Easy code copying and quick pairing.
OEM
AM9756
8543709099
Color
Black

Standard Programming Method

1. Remote Preparation

  • Hold button 1 and press button 2 four times
  • Release both buttons
  • The LED of the universal remote will emit a quick flash every 2 seconds

2. Remote Positioning

  • Place the original remote control in front of the universal remote
  • Maintain a distance of exactly 2-3 cm

3. Signal Copying

  • Press and hold the button on the original remote that you want to copy
  • Hold until the LED turns on with a fixed light
  • Then it will start emitting a double flash every 2 seconds

4. Code Storage

  • The LED will start flashing quickly
  • Press the button on the universal remote (1-4) where you want to store the code
  • Hold until the LED turns off

5. Receiver Activation

  • Activate the procedure to insert the new remote control into the receiver
Note: To copy another button, repeat the entire procedure from step 1.

Method for BFT Remote Controls

1. Remote Preparation

  • Hold button 1 and press button 2 four times
  • Release both buttons

2. Positioning and Copying

  • Place the original remote at a distance of 2-3 cm
  • Press and hold the button on the original remote
  • Hold until the LED lights up continuously and starts double flashing

3. Transmitting Seed Code

  • Transmit the seed code of the original remote:
  • • Press the hidden button on the back, or
  • • Press buttons 1 and 2 simultaneously (newer models)

4. Completion

  • The LED will flash quickly - press the button where you want to store the code
  • Hold until the LED turns off
  • Activate the procedure in the receiver

Method for FAAC and GENIUS Remote Controls

⚠️ IMPORTANT: Verify that the remote control to be copied is a MASTER. When pressing any button, the LED should issue a double flash rather than switch on immediately as a fixed light.

1. Preparation

  • Hold button 1 and press button 2 four times
  • Place the original remote at a distance of 2-3 cm

2. Copying

  • Press and hold the button on the original remote
  • Hold until the LED of the universal remote lights up continuously
  • Then it starts emitting a double flash every 2 seconds

3. FAAC/GENIUS Preparation

  • Prepare the FAAC/GENIUS remote for seed code transmission
  • Press buttons 2 and 3 simultaneously

4. Final Copying

  • While the FAAC/GENIUS LED is flashing
  • Place it in front of the universal remote (2-3 cm)
  • Press the button you want to copy
  • Hold until the LED changes flashing frequency (faster)

Automatic Matching Code (AMC)

Automatic Matching:

  • Press the button you want to match code
  • Hold until the receiver emits the code
  • The LED of the remote flashes quickly
  • Release the button - the remote's code has been matched successfully

Emitting Seed Code:

  • Press buttons 1 and 2 simultaneously
  • Hold until the LED flashes quickly
  • Release both buttons
  • Press the button you want to emit seed code

Compatible Brands and Models

Brands with AMC Method (Automatic Matching):

  • ACM: TX2, TX2 COLOR, TX4
  • ADYX: TE4433H BLUE, 433-HG BRAVO
  • AERF: COMPACT, HY-DOM, MERCURI B, MERCURI C, SABUTON, MARS, SATURN, ST3/N, TERRA, TMP-1, TMP-2, UNITECH
  • ALLMATIC: BROWN, BROWN RED, BRO.OVER, PASS, MINIPASS, TECH3
  • APERIO: GO, GO PRO, GO MINI
  • APERTO (Sommer): TX02-434-2, TX02-868-2 BLUE, 4025 TX02-868-2, 4022 TX02-434-2, 4020-TX03-434, TX-03-868-4, 4013, TX03-434-4
  • APRIMATIC: TR2/TR4, TM4, TXM
  • ATA: PTX4 BLUE, PTX4 PINK
  • AVIDSEN: 104251, 104250, 104250 OLD, 104250 RED, 104257, 104350, 654250

Main Supported Brands:

  • BALLAN: FM400, FM400E, FM404B, 4013
  • BENINCA: TO.GO.WV, TWV, ROLLKEY, APPLE, LOT WCV, CUPIDO, TO.GO.QV, IO, LOT2WCV, LOT1W, LOT2W, LOT4W, LOT1WM, LOT2WM, T2W, T4W, APPLE
  • BFT: MITTO, MITTO M (MITTO2M/MITTO4M), MITTO RCB (MITTO RCB02/RCB04), MITTO A (MITTO 2A/MITTO 4A), MITTO B, TRC(TRC2/TRC4), GHIBLI, MURALE, KLEIO, TE01, TE02, TE04, RB4
  • CAME: T431, T434, TOP432A, TOP434A, TOP432, TAM432SA, TOP432NA
  • CARDIN: TRQ S449 series, TXQ S449 series, TRQ S486 series, TXQ S486 series, S437 TX, XRADO, S449, S476TX2, S476TX, S486
  • CASALI: JA33 AMIGO, GENIUS/CASALI A252RC
  • CHAMBERLAIN/LIFTMASTER: 953ESTD, 371 LM, 971 LM, 84330E, 94334CE, 94333E/94334E/94335E, 9747E, 1A5639-7, 1A5477, 1A6487, 132B2372
  • FAAC: XT4 433 RC, TM1 433 DS, TM2 433 DS, TM3 433 DS, 433L2, 433L4, TM22 433 SLP, TM4 433 SLP, TML 433SLH, TML 868 SLH, DL 868 SLH, XT 868SLH, XT 433 SLH, T 868 SLH, T 433 SLH, XT 433 RC, TE433HG
  • GENIUS: AMIGO, AMIGOLD, KILO, BRAVO, ECHO
  • HORMANN: HSM2, HSM4
  • NICE: SMILO, FLOR-S, VERY-VR, INTI, FLO2, FLO4, FLOR-S ERA, ONE (ON), ON ERA, ERGO, PLANO, ONE (ON FM)
  • NORTON: NEO, TXCD, GO NORTON, GO MINI NORTON
  • SOMFY: TELIS, K-EASY, K-EASY NEW, K-EASY OLD, MITTO, KEY GO RTS, TELIS RTS, KEYTIS RTS, KEYTIS RTS NS, ALARMA
  • SOMMER: 4010, 4011, 4014 TX03-434-2, 4013 TX03-434-4, 4020 TX03-868-4, 4026 TX03-868-2, 4022 TX02-434-2, 4025 TX02-868-2, 4031 TX08-868-4

Additional Supported Brands:

  • CASIT: ERTS92B, ERTS92T, ERTS476D, ERTS20DQ, ERTS476Q
  • CELISA: S10 1, S10 2
  • CENTURION: CLASSIC, SMART
  • CLEMSA: MUTANCODE, T, T-8, E-CODE N, MASTERCODE MV
  • DASPI: HAPPY2, POPS 2, ZERO RC (ZERO 2RC, ZERO 4RC)
  • DEA SYSTEM: TR MIO, 133 1, 433 2, 433 4, GENIE, PUNTO S2, PUNTO 278, GOLDR, GENIE R 273, GENIE R-GT2N
  • DITEC: GOL, GOL4C, BIXLS2, BIXLP2, BIXAG4, BIXLG
  • GIBIDI: OPEN TMB, OPEN OUT, AU1600, AU1600 WOOD, AU1680, AU1680 WOOD, DOMINO
  • LINEAR: MCT-11, ACT-21, ACT-22, STING RAY ACT-31, STING RAY ACT-34B
  • MERLIN/PROLIFT: M230T(PROLIFT), M430R(PROLIFT), M842(GREEN REMOTE), M832(GREEN REMOTE), M844(GREEN REMOTE), C945, C940, C943
  • PRASTEL: TC2E(4E), SLIM, BFOR, MPSTP2E, MPSTF2, MPSTF4, MPSTF2RE, MPSTF4RE, MPSTP2E, MPSTP2E BLUE, MTE(MT4E,MT2E), TRQ-P(TRQ4P,TRQ2P), MPSTLE(MPSTL-1E,MPSTL-2E,MPSTL-4E)
  • V2: PHOENIX 433-868, TXC, TSC, TRC, HANDY, SERIE ROYAL: TRR/43, TRR2/43, TRR4/43, PHOX 433

Tips and Troubleshooting

Optimal Conditions for Copying:

  • Distance: Exactly 2-3 cm between remotes
  • Batteries: Check battery status in both remotes
  • Environment: Copy in a room without strong electromagnetic interference

Pre-Copying Checks:

  • Verify that the original remote works properly
  • For FAAC/GENIUS, check that it is a MASTER remote
  • Ensure the LED of the universal remote lights/blinks according to instructions

Common Problems:

  • LED not blinking: Check batteries, repeat the first step
  • Copying fails: Try adjusting distance or angle between remotes
  • Receiver not responding: Activate the correct procedure on the receiver according to brand

After Successful Copying:

  • Test the functionality of all copied buttons
  • Label which button corresponds to which function
  • Store the original remote as a backup

Technical Specifications

  • Frequency: 433.92 MHz / 868 MHz (depending on copied remote)
  • Range: According to original remote specifications
  • Power Supply: Batteries (type depends on model)
  • Operating Temperature: -10°C to +55°C (14°F to 131°F)
  • Memory Capacity: 4 different codes
  • Encoding Type: Rolling code / Fixed code
Note: The manufacturer reserves the right to make technical changes without prior notice.

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
