Inductive sensor PS-05P, NO/PNP 10-30VDC

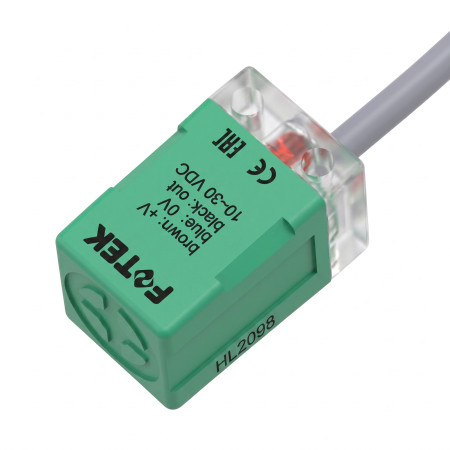

The PS-05P inductive sensor is used for non-contact detection of metal objects in automation, machine and industrial applications. It is a square sensor of the PS series with PNP output, designed for horizontal mounting. The sensor design is suitable for use where switching based on the approach of a metal object without mechanical contact is required.

Technical specifications

• Model: PS-05P
• Product type: inductive proximity sensor
• Design: square
• Output method: PNP
• Output state: NO
• Sensing distance: 5.0 mm
• Mounting method: flush mounting
• Scanning direction: horizontal
• Supply voltage: 10 to 30 V DC
• Maximum output current: 150 mA
• Maximum self-consumption: 10 mA
• Residual voltage: less than 0.1 V
• Leakage current: less than 0.8 mA
• Hysteresis: less than 10% of the sensing distance
• Temperature drift: less than 10 μm per °C
• Voltage drift: less than 1 μm per V
• Protection circuits: short circuit and reverse polarity protection
• Operating temperature: -25°C to +80°C
• Operating humidity: 35% to 95% RH
• Sensor dimensions: 17.0 x 17.0 x 29.0 mm
• Mounting holes: 2 holes 3.2 x 2
• Cable length: 100cm
• Protection: IP67
• Response frequency: 800 Hz

Functions and features

• Non-contact inductive detection of metal objects.
• PNP switching output in NO version.
• Square body for fixed mounting in a structure or holder.
• Recessed mounting design.
• Horizontal scanning orientation.
• Built-in protection against short circuit and reverse polarity of power supply.
• IP67 protection rating for use in industrial environments.

Ideal for

• Industrial automation and production lines.
• Position detection of metal machine parts.
• Sensing the presence of metal parts in fixtures and mechanisms.
• Integration into control and signaling circuits with DC power supply.

Package contents

• Inductive sensor PS-05P

Why choose this product?

• Clearly defined technical design with PNP output and NO logic.
• Flush mounting and square body facilitate integration into machine units.
• Protective circuits increase resistance when connected in industrial applications.
• IP67 protection and a wide range of operating conditions support use in more demanding operations.

Installation and operating instructions

• Observe the correct wiring according to the wiring diagram for the PNP variant.
• Install the sensor in accordance with the desired flush mounting method.
• When installing, ensure the correct orientation of the sensing surface relative to the detected metal object.
• Connect power supply and load only within the limits of the specified electrical parameters.

Safety notice

• Only carry out electrical connections when the power supply is disconnected.
• Incorrect wiring may cause damage to the sensor or connected equipment.
• Installation into control and industrial systems should be carried out by a person with appropriate electrical qualifications.
• Do not operate the sensor outside the specified power supply, current, and ambient conditions.
