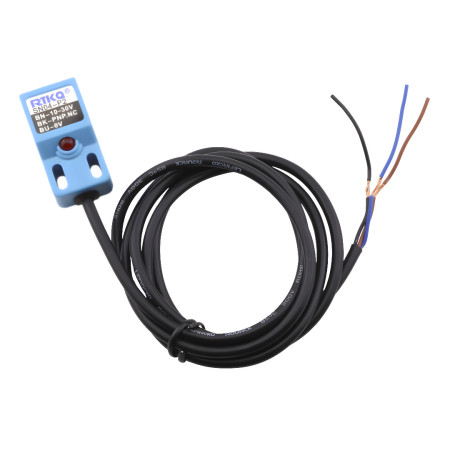

Inductive sensor SN04 P2, PNP NC

Inductive proximity sensor PNP NC with LED indication and mounting holes. The module is widely used in automation for detection, control and contactless switching.

Specifications:
Detection distance: 4 mm ±10%
Adjustable distance: 0–3.8 mm
Detected objects: magnetic and non-magnetic metals (detection distance decreases for non-magnetic metals)
Sensitivity: metal 18x18x1mm
On state indication
Supply voltage: 10–30V DC
Output current: max. 300mA
Response frequency: 0.5 kHz
Output: 3 wires, Vcc, GND, NPN NO
Protection: IP67
Cable length: 120cm

Package contents: sensor, mounting screws
