Laser module red 635nm, 100mW, cross (set)

Brand: OEM

Product code: AM3416-110

On order

Red laser module (635nm) power 100mW. Set of laser module with holder and power supply.

Download PDF

⚠️ Warning: Laser device, never look into the beam. Exposure of the eyes to the direct or reflected beam may cause serious eye damage. Wear protective goggles appropriate for the laser’s wavelength.

Description

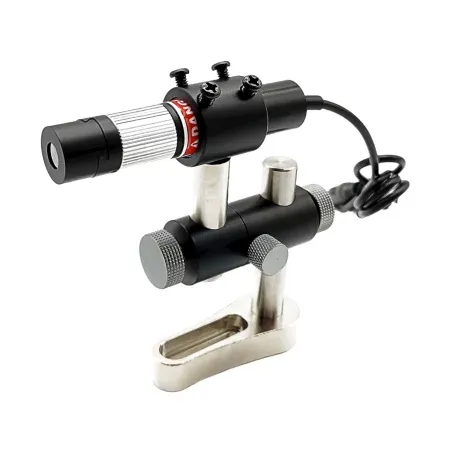

Laser module with refocusable lens. Adjustable holder in 3 axes.

Lens: cross

Wavelength: 635nm (red)

Working voltage: 5V DC

Source input voltage: 220-250V AC

Current: max. 240mA

Degree of protection: IP20

Safety class: III B

Working temperature: -20 - 60°C

Laser module size: Ø16x81mm

Cable length: 100cm

Range max. 10m

Package contents: laser module, adjustable holder, 5V DC power supply

Safety Warnings:
During operation, avoid any impact of the beam into human or animal eyes. The laser is not safe for human health.

RADIATION ANGLE	LINE LENGTH ±10%
DISTANCE LASER MODULE	1M	2M	3M
15°	25 cm	52 cm	79 cm
30°	53 cm	107 cm	160 cm
45°	82 cm	165 cm	248 cm
60°	115 cm	230 cm	346 cm
110°	285 cm	571 cm	857 cm
