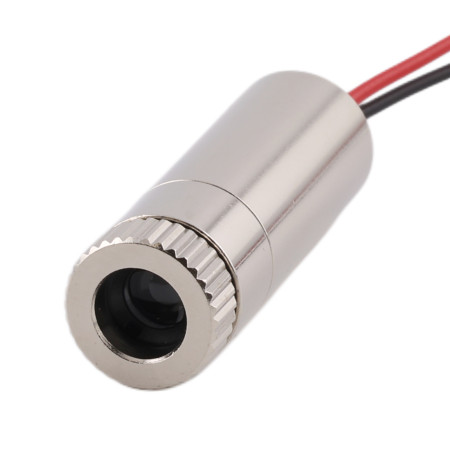

Laser Module 5mW 405nm Focusable Dot Aluminum

Laser module, 5mW, 405nm, point (dot)

13.63 €

13.63 € excl. VAT

13.631621 Tax excluded

In stock

Quantity:

Download PDF

⚠️ Safety warning: This laser module is an electronic component intended exclusively for professional, laboratory, and industrial applications. It is not intended for consumer or household use and must not be used as a laser pointer.

During operation, it is necessary to comply with the safety requirements of the EN 60825-1 standard and to use appropriate protective equipment. The manufacturer of the final device is responsible for the resulting laser classification according to EN 60825-1.

Description

Compact and precise point laser module with a wavelength of 405nm, aluminum body and focusable lens offers projection in the form of a point, line or cross (optional). Ideal for aiming, marking or various optical applications. Thanks to the focusing option and wide projection angle (120°) it is also suitable for more demanding projects with requirements for precise line output.

Technical specifications

Wavelength: 405 nm (violet laser)
Output power: 5mW
Working voltage: DC 3-5V
Working temperature: +15 °C to +35 °C
Duty cycle: 45 s on / 15 s off
Beam shape: point
Focusing option: yes (focusable output)
Body material: anodized aluminum
Dimensions: 12 × 35 mm
Cable length: approx. 100 mm
Protection class: IP20 (for indoor use)
Certification: CE, RoHS

Functions and features

High precision and stability of the light spot
Possibility of projecting a line at an angle of up to 120° or a cross (optional)
Focus function to adjust projection size and sharpness
Compact design with aluminum body for optimal heat dissipation
Low power consumption and no need for external cooling

Ideal for

Precise line marking in industrial applications
Laser aiming and optical tests
DIY electronic projects and CNC machines
Educational experiments and demonstrations of laser phenomena

Package contents

1× 405nm laser module

Construction

During assembly, it is necessary to electrically isolate the laser module from other metal parts. The laser diode usually has one pole connected to a metal housing, which serves as a heat sink. A direct conductive connection could damage the diode. At the same time, we recommend using antistatic agents, avoiding clothing that generates electrostatic charge, and touching a grounded object (e.g. a heater or water pipe) before handling.

Cooling

The module does not require any additional cooling due to its low power and efficient heat dissipation. It is also suitable for closed installations without the risk of overheating or shortened lifespan.

Data sheet
