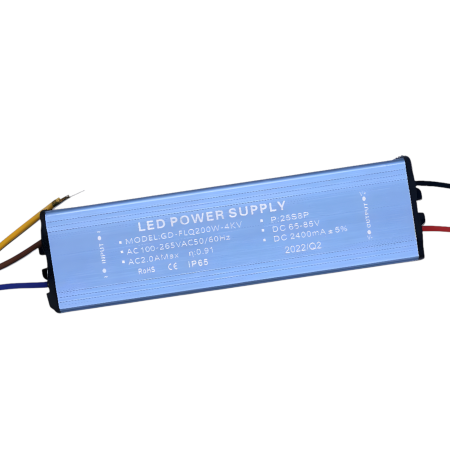

Power supply for 200W LED, 65-85V, 2400mA, IP65

The powerful LED power supply with constant current 2400mA is designed for demanding LED applications such as spotlights, industrial and outdoor lighting. Thanks to the wide input range AC100–265V, robust aluminum construction and IP65 protection, it provides stable power supply even in harsh conditions and significantly extends the life of LED modules.

Technical specifications

• Power: 200W
• Output current: 2400mA ±5%
• Output voltage: DC65-85V
• Open circuit voltage: DC120V (MAX)
• Input voltage: AC100–265V, 50/60Hz
• Driver type: Non-isolated - constant current
• Body material: Aluminum alloy - high cooling efficiency
• Protection: IP65 – water and dust resistance
• Weight: 232g
• Dimensions: 130 × 36 × 25 mm
• Certification: CE, ROHS,
• PF: ≥ 0.95
• Surge protection: 4 kV

Functions and features

• Constant current 2400mA for powerful LED modules 65–85V.
• The non-insulated design ensures high efficiency and compact dimensions.
• Aluminum construction with passive cooling for long-term operation.
• High compatibility with a wide range of AC input voltage.
• Suitable for parallel and series modes depending on the type of LED installation.
• Stable output without flickering and without current fluctuations.
• IP65 protection allows use outdoors even in dusty environments.

Ideal for

• LED spotlights 65–85V
• Industrial and outdoor lighting
• Architectural lighting of buildings
• Powerful COB LED modules
• LED headlights and strong light panels

Package contents

• 1× LED power supply 200W, 2400mA, DC65–85V (IP65)

Why choose this product?

• Strong current of 2400mA to power powerful LED chips.
• Compact body with high resistance and perfect heat dissipation.
• IP65 protection for trouble-free outdoor use.
• Reliable operation even with input voltage fluctuations.
• CE and ROHS certification – a guarantee of safety and quality.
