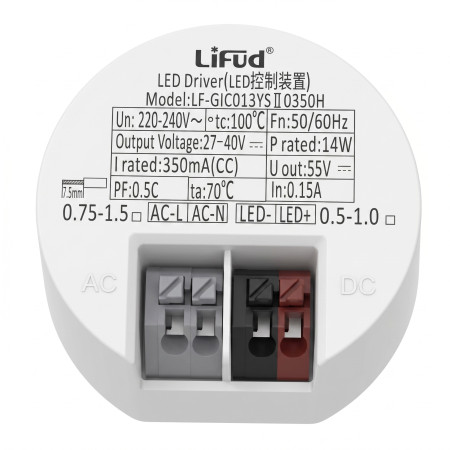

LiFud Power Supply 14 W, 180-265VAC/22-40VDC, 350 mA

The round LED driver is a power supply for LED luminaires with a constant output current of 350 mA. It is designed to power compatible LED modules and luminaires from an AC 220-240 V mains supply, especially in installations with limited space for mounting power electronics.

Technical Specifications

• Product type: LED driver
• Design: Round housing
• Power: 14 W
• Output current: 350 mA
• Output voltage: DC 22-40 V
• Input voltage: AC 220-240 V
• Efficiency: ≥82%
• Power factor: 0.85
• Dimensions: Φ42 × 22 mm
• Electrical connection: Pre-wired leads

Features and Properties

• LED power supply with a constant current of 350 mA.
• Compact round design suitable for building into luminaires.
• Separate input and output wires for connecting the mains supply and LED load.
• Designed for LED loads matching the specified output voltage and current range.

Ideal For

• LED panel lights.
• LED ceiling lights.
• Recessed LED luminaires.
• Indoor LED lighting requiring a 350 mA constant current driver.

Package Contents

• 1× Round LED driver 14 W 350 mA.

Why Choose This Product

• Meets the requirements of LED applications needing a 350 mA constant current.
• The DC 22-40 V output range allows use with compatible LED loads within this range.
• The round housing measuring Φ42 × 22 mm is perfect for installation in tight luminaire spaces.
• Pre-wired leads make connection easy without needing separate terminal blocks on the driver body.

Installation and Operating Instructions

• Before connecting, verify the LED load matches the 350 mA output current and DC 22-40 V output voltage.
• Connect the input wires to the AC 220-240 V mains supply.
• Connect the output wires to the LED load with the correct polarity.
• Perform the installation with the power disconnected.
• Installation must be carried out by a qualified electrician.

Safety Warnings

• The device operates with AC 220-240 V mains voltage; improper handling poses a risk of electric shock.
• Do not connect the driver to the power supply without a properly connected and compatible LED load.
• Incorrect output polarity connection can damage the LED load or the driver.
• Do not use the driver if the housing, wires, or insulation are mechanically damaged.
• Ensure placement prevents overheating or contact of wires with sharp edges.
