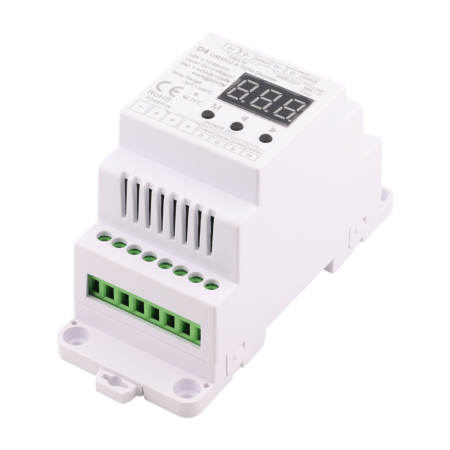

DMX512 decoder D4 to DIN, 4-channel, 12-24V DC

DMX512 decoder D4 is a professional control unit designed for precise control of LED strips and LED luminaires in systems controlled by the DMX512 protocol. It offers four output channels, high PWM resolution, a digital display for easy configuration and supports RGB, RGBW and single-color LED strips. Thanks to its DIN rail mounting, it is ideal for distribution cabinets, architectural installations and stage lighting.

Technical specifications

• Model: D4
• Control protocol: DMX512
• Supply voltage: 12-24 V DC
• Number of output channels: 4
• Output current: 4 × 5 A (total max. 20 A)
• Maximum power: 4 × 60 W at 12 V DC / 4 × 120 W at 24 V DC
• Output type: constant voltage
• PWM frequency: 500 / 1000 / 2000 / 4000 / 8000 / 16000 Hz (optional)
• Dimming resolution: 8bit (256 levels) / 16bit (65536 levels)
• Dimming curve: linear or logarithmic
• Display: digital LED display
• Control: buttons on the device
• Mounting: DIN rail TS35
• Protection: IP20
• Operating temperature: −30 to +55 °C
• Maximum housing temperature: +75 °C
• Dimensions: 110 × 67 × 45 mm
• Weight: 130g

Functions and features

• Full compatibility with DMX512 standard
• Digital setting of DMX start address using buttons
• Support RDM communication between DMX controller and decoder
• Selectable number of DMX channels: 1 / 2 / 4
• Standalone operation mode without DMX signal
• Support for RGB, RGBW and single-color LED strips
• Automatic protection against overheating, overload and short circuit
• Automatic operation recovery after error removal

Ideal for

• Architectural and decorative LED lighting
• DMX controlled LED installation
• Theater and stage lighting
• Lighting for bars, clubs and commercial spaces
• Distribution board installations with DIN rail

Package contents

• 1× DMX512 decoder D4

Why choose this product?

• Reliable, high-performance DMX512 decoder
• Smooth dimming thanks to up to 16-bit resolution
• Flexible use for different types of LED strips
• Easy installation on DIN rail
• Comprehensive protection for long device life
