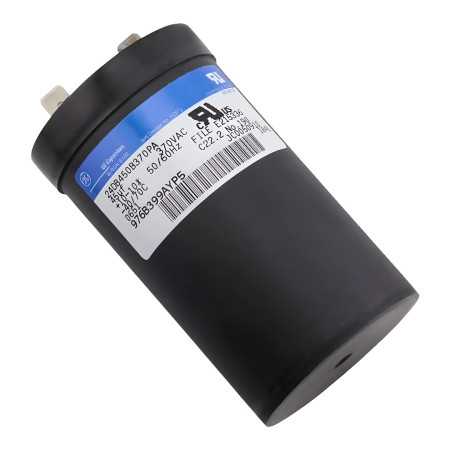

Motor capacitor GE 24DB450B370PA, 370 VAC, 45 uF

The GE 24DB450B370PA motor capacitor is a film capacitor designed for continuous operation in single-phase AC motors. It is mainly used as a run capacitor in compressors, fans and pumps in air conditioning, refrigeration and ventilation equipment. It ensures the correct phase of the motor winding power supply throughout its operation.

Technical specifications

• Model number: 24DB450B370PA
• Brand: GE
• Capacity: 45uF
• Capacity tolerance: ±10%
• Rated voltage: 370 VAC
• Frequency: 50/60Hz
• Maximum operating temperature: 70 °C
• Construction: film capacitor (metallized polypropylene)
• Design: cylindrical housing
• Connection: flat terminals (faston)
• Dimensions: 45 x 80 mm

Functions and features

• Designed for continuous operation in an AC motor circuit (motor run capacitor)
• Metallized polypropylene dielectric exhibits self-healing properties in the event of local breakdown
• Cylindrical housing ensures compact installation in control cabinets and motor housings
• Flat terminals (faston) allow for quick and reliable connections without soldering
• PCB-free and oil-free construction

Ideal for

• Run capacitor of single-phase asynchronous motors
• Compressors for air conditioning and refrigeration units
• Ventilation system fans
• Pumps and other equipment with single-phase AC motor
• OEM replacement part for equipment requiring a 45 uF / 370 VAC capacitor

Package contents

• 1x GE 24DB450B370PA capacitor

Why choose this product?

• Original GE part with precisely defined electrical parameters
• Standard dimensions and connection type facilitate direct replacement during servicing
• Film construction with metallized polypropylene ensures long life in continuous operation
• Compatibility with both 50 and 60 Hz frequencies expands the range of applications

Installation and operating instructions

• Before replacing the capacitor, disconnect the device from the power supply and short-circuit the capacitor terminals to discharge any residual charge.
• When replacing, ensure that the nominal capacity and voltage match the original part.
• Install the condenser in an environment where the operating temperature does not exceed 70 °C.
• Entrust the installation and connection to a person with professional electrical qualifications.

Safety notice

• The capacitor operates at 370 VAC - touching live voltage is life-threatening
• Even after disconnecting from the mains, the capacitor may retain a dangerous electrical charge – always perform a controlled discharge before handling.
• Do not exceed the rated voltage or maximum operating temperature - there is a risk of damage or destruction of the capacitor
• Do not use a capacitor with mechanical damage to the case or terminals.
• Installation may only be carried out by a person with appropriate electrical qualifications.
