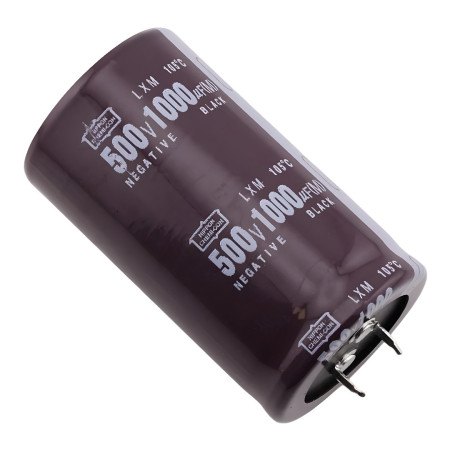

Capacitor 500V, 1000uF

High-capacity aluminum electrolytic capacitor designed for general electronic applications with high operating voltage. With a nominal capacity of 1000 µF and a maximum voltage of 500 V DC, it is particularly suitable for filtering, smoothing and storage functions in power supplies, industrial electronics and power circuits.

Technical specifications

• Type: Aluminum electrolytic capacitor
• Capacity: 1000 µF
• Rated voltage: 500 V DC
• Capacity tolerance: ±20%
• Design: Radial (Through Hole)
• Case dimensions: diameter 35 mm × height 60 mm
• Alternative design: diameter 35 mm × height 70 mm
• Polarity: Yes (marked on the case)
• Case color: Bordeaux
• Weight: 180g
• Protection: IP00

Functions and features

• High capacity suitable for effective voltage smoothing
• Ability to work at high DC voltage
• Standard radial leads for easy PCB mounting
• Aluminum housing for good heat dissipation
• Designed for long-term operation in common electronic applications

Ideal for

• Filter capacitors in power supplies
• Smoothing ripples after rectification
• Industrial control systems
• Power and high-current electronics
• Repair and service of electronic devices

Package contents

• Electrolytic capacitor 1000 µF / 500 V

Why choose this product?

• High working voltage 500 V DC
• Large capacitance of 1000 µF for stable circuit operation
• Standard dimensions compatible with common designs
• Reliable solution for more demanding electronic applications
