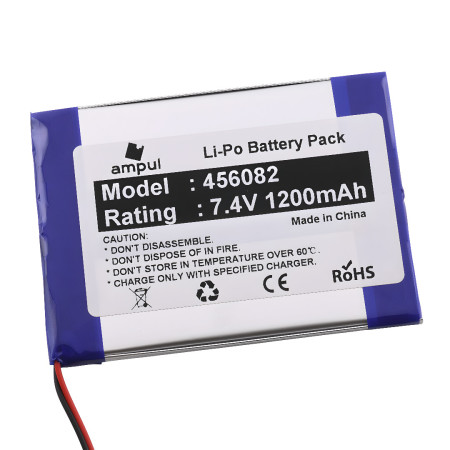

Li-Pol battery 1200mAh, 7.4V, 456082

Lithium-polymer (Li-Pol) battery with a nominal voltage of 7.4 V is designed to power portable electronics and embedded devices. Thanks to the integrated protection circuit, it is suitable for applications requiring stable power supply and repeated charging.

Technical specifications

• Voltage: 7.4V
• Capacity: 1200mAh
• Capacity: 8.88Wh
• Charging voltage: 7.4-8.4 V DC
• Discharge current: 1C
• Number of charging cycles: 2000
• Minimal self-discharge (approx. 5% per month)
• Working temperature: -10 - 50°C
• Type designation: 456082
• Size: 82x60x4.5mm

Functions and features

• Li-Pol technology suitable for compact installations
• Integrated protection chip
• No memory effect
• Possibility of connecting multiple cells in series according to application requirements

Ideal for

• Portable electronic devices
• Built-in power modules and battery packs
• Service replacement of batteries with identical dimensions and parameters

Package contents

• 1× Li-Pol battery 7.4 V 1200 mAh with integrated protection

Why choose this product?

• Clearly defined electrical parameters for power supply design
• Integrated protection for common battery operating conditions
• Low self-discharge for storage and irregular use

Installation and operating instructions

• Use a charger designed for Li-Pol 2S (charging up to 8.4 V) and follow the recommended charging procedures.
• Ensure mechanical protection of the battery against puncture, deformation and vibration.
• When designing your device, verify the compatibility of connectors, polarity, and space options according to dimensions.

Safety notice

• ATTENTION: If the voltage drops below 2.7 V, the battery may be irreversibly destroyed.
• Do not short-circuit, puncture, expose to fire or temperatures outside the specified range.
• Charge only within the specified voltage range and do not leave unattended in hazardous environments.
