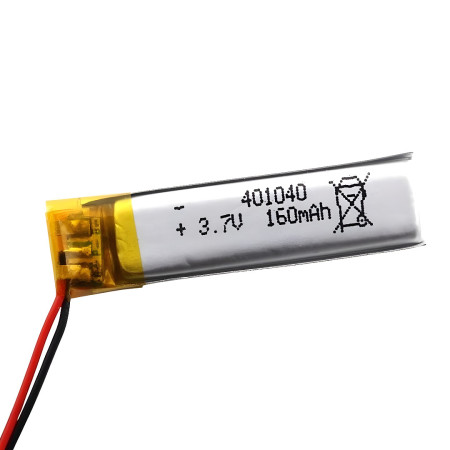

Li-Pol battery 160mAh, 3.7V, 401040

The compact Li-Pol (lithium-polymer) rechargeable battery in a flat case with terminals (red/black wire) is suitable as a power source for small portable electronics and built-in applications. Thanks to its low self-discharge, it is also suitable for devices with occasional operation.

Technical specifications

• Cell type: Li-Pol (Li-ion polymer)
• Voltage: 3.7V
• Capacity: 160mAh
• Capacity: 0.592Wh
• Charging voltage: 4.2V
• Discharge current: 1C
• Number of charging cycles: 2000
• Minimal self-discharge (approx. 5% per month)
• Working temperature: -10 - 50°C
• Type designation: 401040
• Size: 40 x 10 x 4 mm
• Terminal design: wires (red +, black -)

Functions and features

• Flat format for installation in narrow spaces
• Suitable for repeated charging in low-power applications
• Standard nominal voltage 3.7 V for single-cell Li-Pol systems
• Terminals on the wires for easy connection to the device

Ideal for

• Small portable devices and built-in modules
• DIY electronics, prototypes and battery service replacements
• Devices powered by a single Li-Polymer cell (1S)

Package contents

• 1x Li-Pol battery 401040 3.7 V 160 mAh with wires

Why choose this product?

• Clearly defined dimensions for structural design
• Capacity and voltage suitable for compact electronics power supply
• Parameters suitable for normal Li-Pol charging mode (CC/CV at 4.2 V)

Installation and operating instructions

• Charge only with a charger/controller designed for Li-Pol (1S) with a terminal voltage of 4.2 V.
• Observe the polarity of the wires: the red wire is the positive pole (+), the black wire is the negative pole (-).
• When designing the device, consider the 1C discharge current and the corresponding current load of the wires and connections.

Safety notice

• Do not overcharge above 4.2V and do not discharge below the safe voltage recommended for Li-Pol cells; use appropriate protection (BMS/protection circuit) according to the application.
• Do not short-circuit, puncture, deform, or expose the battery to high temperatures.
• Install in such a way that there is no mechanical stress on the housing or wires.
