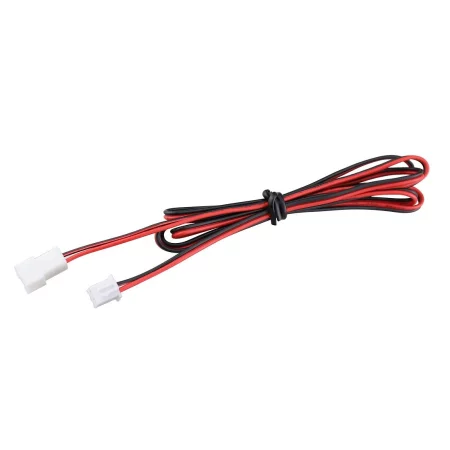

Extension cable XH2.54, 1 meter, 2-pin

The extension cable with XH2.54 (2-pin) connectors is designed for simple extension of two-wire connections in low-voltage applications. You can use it, for example, to connect fans, sensors or other control elements where an XH2.54 interface and quick installation without wiring modifications are required.

Technical specifications

• Cable length: 1 m
• Connector: XH2.54, 2-pin
• Connector design: XH2.54 2-pin female – XH2.54 2-pin male
• Number of wires: 2
• Maximum voltage: 30 V DC
• Maximum current: 1 A

Functions and features

• Extension connection for two-wire circuits with XH2.54 connectors
• Possibility of quick connection without soldering when using compatible counterparts
• Suitable for low-voltage DC distribution in electronic assemblies
• Two-wire design for power supply or simple signal line

Ideal for

• Fan connection extension with XH2.54 connector
• Interconnection of modules, sensors and simple controls in DC applications
• Service and prototype wiring where detachable cabling is required
• Internal wiring of low voltage equipment and switchboard assemblies

Package contents

• 1 pc extension cable XH2.54, 2-pin, 1 m (female–male)

Why choose this product?

• Compatibility with XH2.54 interface for 2-pin connection
• Practical 1 m length for extending the wiring without interfering with the device

Installation and operating instructions

• Before connecting, verify that the pitch and type of the XH2.54 connector match the counterpart in your application.
• Observe a maximum voltage of 30 V DC and a maximum current of 1 A.
• During installation, route the cable in such a way as to avoid mechanical stress on the connectors and wires.

Safety notice

• The product is intended for low voltage DC applications. Do not use in circuits with higher voltage than specified in the specification.
• When working on the wiring, disconnect the power and check the correct polarity of the wires in the assembly.
