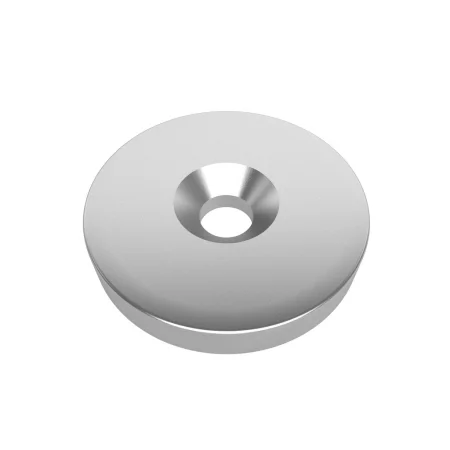

Neodymium magnet with 6mm hole, ⌀50x5mm, N35

7.33 €

7.33 € Tax excluded

7.33 € without VAT i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Neodymium magnet with a conical hole for attachment (for example with a screw).
Chrome-nickel surface treatment prevents oxidation.

Magnet diameter: 50mm
Magnet height: 5mm
Hole diameter: 3mm (conical shape)
Magnetization direction: vertical (when the magnet is placed flat, one pole is at the top and the other at the bottom)
Maximum operating temperature: 80°C
Magnet material properties: N35

OEM
AM8898
Tolerance
± 1 mm
Remanence (Br)
1.17 - 1.22 T
Coercive power
Hcb ≥ 868, Hci ≥ 955 kA/m
Energy density (BH)
263 - 287 kJ/m3
Grade
N35
Material
NdFeB
Max. operating temperature
80°C / 176°F
Surface finish
Nickel (Ni-Cu-Ni)

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
