Waterproof 12V to 48V Voltage Converter, 30A 1440W IP67
zoom_out_map
chevron_left chevron_right

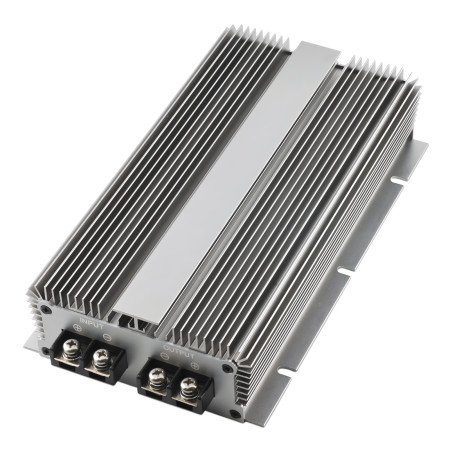

Voltage converter from 12V to 48V, 30A, 1440W, IP67

325.25 €

325.25 € excl. VAT

325.245536 Tax excluded

i
The applied VAT rate is 0% for the country United States.

Including 0.14 € for ecotax

notifications_active Last items in stock
Download PDF

High-quality DC/DC voltage converter from 12V DC to 48V DC max. 30A.

Very wide input voltage range.

Input voltage: 12V DC (10-18V DC)
Output voltage: 48V DC, max. 30A
Efficiency: 98%
No-load current consumption: max. 50mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -40~+80°C
Ambient humidity: 0~95%
Protection: IP67
Size: 220x130x50mm
Weight: 2200g

OEM
AM6594
85044090
Input voltage
12 V DC
Output voltage
48 V DC
Output current
30 A
Output power
1440 W
Waterproof grade
IP68
Lifetime
100,000 hours

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
