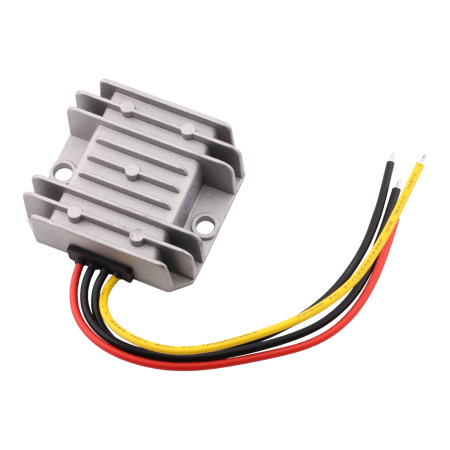

Voltage Converter from 20-120V to 12V, 10A, 120W, IP68
zoom_out_map
chevron_left chevron_right

Voltage Converter from 20-120V to 12V, 10A, 120W, IP68

Discover the robust Voltage Converter from 20-120V to 12V, 10A, 120W, IP68. This premium DC/DC step-down device ensures exceptional reliability. Features include a 100,000-hour lifetime, waterproof grade IP68, and aluminum housing.

23.37 €

23.37 € excl. VAT

23.369233 Tax excluded

Including 0.03 € for ecotax

new_releases In stock at supplier
Download PDF

High-quality DC/DC voltage converter from 20-120V DC to 12V DC, max. 10A.

Input voltage: 20-120 V DC
Output voltage: 12 V DC, max. 10A
Efficiency: 91.3%
No-load current: max. 48mA
Overload, overvoltage, overheating, and short circuit protection
Aluminum housing with cooling fins for heat dissipation
Certificates: CE, RoHS
Operating temperature: -30 ~ +80 °C
Ambient humidity: 0 ~ 95%
Protection rating: IP68
Dimensions: 74x74x32mm
Weight: 261g

AMPUL
AM3290
85044090
Input voltage
20-120 V DC
Output voltage
12 V DC
Output current
10 A
Output power
120 W
Waterproof grade
IP68
Lifetime
100,000 hours

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
