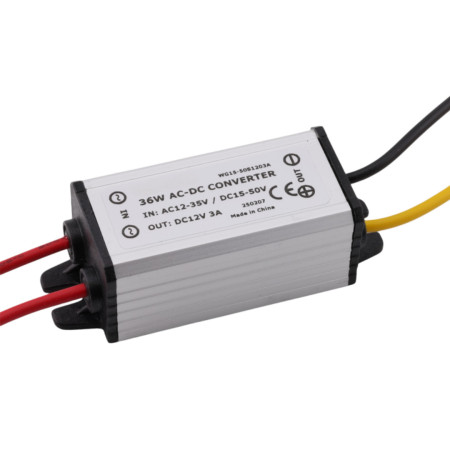

Voltage converter from 12-35V AC to 12V DC, 3A, 36W, IP68

The voltage converter is used to convert low-voltage alternating current power to a stabilized direct current output of 12 V DC. It is designed for powering devices requiring a direct current voltage of 12 V in installations where an input voltage of 12-35 V AC is available. The metal casing with IP68 protection allows use in environments with increased demands for resistance to moisture and dust.

Technical specifications

• Device type: AC/DC voltage converter
• Input voltage: 12-35 V AC
• Output voltage: 12 V DC
• Maximum output current: 3 A
• Output power: 36 W
• Efficiency: 88 %
• No-load consumption: max. 20 mA
• Protection: IP68
• Operating temperature: -40 to +80 °C
• Ambient humidity: 0 to 95 %
• Dimensions: 65 x 25 x 20 mm
• Weight: 50 g
• Certification: CE, RoHS

Functions and features

• Conversion of input alternating voltage to output direct voltage 12 V DC.
• Integrated overload protection.
• Integrated overvoltage protection.
• Integrated overheating protection.
• Integrated short circuit protection.
• Aluminum casing with ribbing for heat dissipation.
• Potted design suitable for installations with a requirement for increased resistance to water and dust.
• Connection using led-out wires.

Ideal for

• Powering 12V DC devices from a 12-35 V AC source.
• Low-voltage electrical installations with a requirement for a stabilized direct current output.
• Technical applications in environments with increased humidity or dustiness.
• Built-in installations in devices, distributions, and systems with limited installation space.

Package contents

• Voltage converter with led-out connection wires.

Why choose this product

• Allows conversion of low-voltage AC power to a 12 V DC output.
• Features the listed protective functions against overload, overvoltage, overheating, and short circuit.
• IP68 protection supports use in more demanding installation conditions.
• The metal ribbed casing helps dissipate heat from the converter.
• Compact dimensions facilitate integration into technical devices.

Installation and operation instructions

• Before connection, verify the compliance of the input voltage with the converter specification.
• Observe the correct polarity of the output direct current voltage.
• The output load must not exceed the specified maximum current and power.
• Install the converter so that it is not mechanically stressed by the supply wires.
• During continuous load, ensure conditions for heat dissipation from the casing.

Safety warnings

• Installation may only be performed by a person with knowledge of wiring electrical devices.
• Disconnect the power supply of the entire circuit before installation.
• Incorrect wiring can cause damage to the converter, connected device, short circuit, or overheating.
• Do not use the product outside the specified electrical and operating parameters.
• Do not connect a damaged converter or a converter with damaged wire insulation to the power supply.
