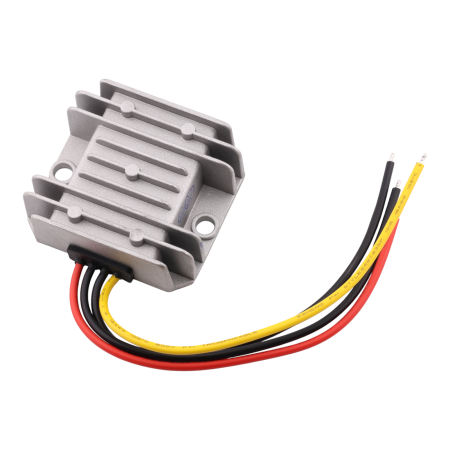

Voltage converter from 8-40V to 12V, 3A, 36W, IP68, AMPUL.
zoom_out_map
chevron_left chevron_right

Voltage converter from 8-40V to 12V, 3A, 36W, IP68

16.95 €

16.95 € Tax excluded

Including 0.03 € for ecotax

16.95 € without VAT
check In stock
datasheet

Very high quality DC/DC voltage converter from 8-40V DC to 12V DC max. 3A.

Input voltage: 8-40 V DC
Output voltage: 12 V DC, max. 3A
Efficiency: 89.1%
No-load consumption: max. 51mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -30 ~ +80 °C
Ambient humidity: 0~95%
Protection: IP68
Size: 64x57x22mm
Weight: 120g

AMPUL
AM3693
Input voltage
8-40 V DC
Output voltage
12 V DC
Output current
3 A
Output power
36 W
Waterproof grade
IP68
Lifetime
100,000 hours

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
