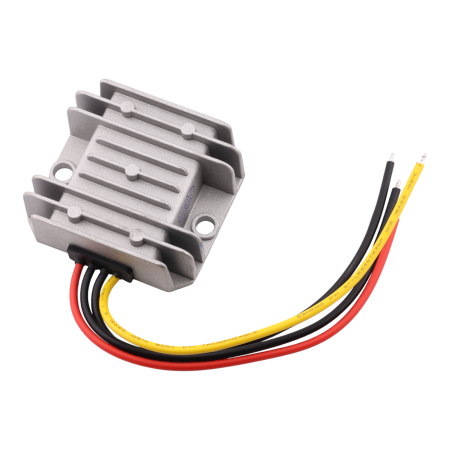

Voltage converter from 12V to 36V, 2A, 72W, IP68

23.32 €

23.32 € Tax excluded

Including 0.03 € for ecotax

23.32 € without VAT i
The applied VAT rate is 0% for the country United States.
notifications_active Last items in stock
Download PDF

Very high quality DC/DC voltage converter from 12V DC to 36V DC max. 2A.

Input voltage: 12 V DC (range 9-16 V DC)
Output voltage: 36 V DC, max. 2A
Efficiency: 94%
No-load consumption: max. 50mA
Protection against overload, overvoltage, overheating, short circuit
Aluminum construction with fins for heat dissipation
Certificates: CE, ROHS
Working temperature: -30 ~ +80 °C
Ambient humidity: 0~95%
Protection: IP68
Size: 64x57x22mm
Weight: 110g

OEM
AM4165
Input voltage
12 V DC
Output voltage
36 V DC
Output current
2 A
Output power
72 W
Waterproof grade
IP68
Lifetime
100,000 hours

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
