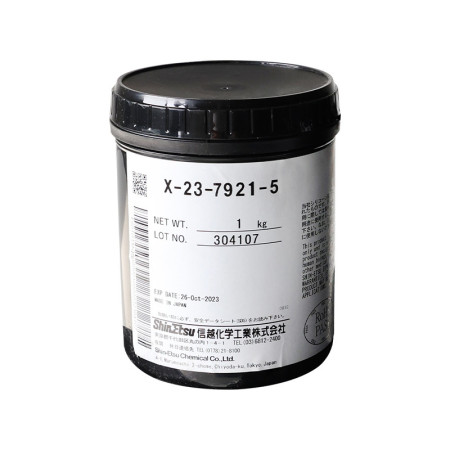

Thermal paste X-23-7921-5, 5g

Shin-Etsu X-23-7921-5 Thermally Conductive Paste is a thermal interface (TIM) designed to fill micro-imperfections between a heat source and a heat sink. It reduces contact thermal resistance, increases heat transfer efficiency, and is suitable for long-term operation in electronic applications. The 5 g package option is designed for service, prototyping, and routine assembly.

Technical specifications

• Type: thermal paste
• Model: X-23-7921-5
• Manufacturer/series: Shin-Etsu
• Color: gray
• Package weight: 5 g
• Thermal conductivity: 6.0 W/mK
• Thermal resistance: 5.8 mm2K/W
• Density (specific gravity): 2.8 g/cm3
• Viscosity: 360 Pa.s
• Evaporation (volatility): 0.44 (150°C/24 h)
• Oil separation rate: 0.05 (150°C/24 h)
• Working temperature: -50 to +120 °C
• Electrical insulation property: insulation coefficient < 100 V / 0.25 mm

Functions and features

• Fills air gaps between component and heat sink and increases contact area
• Promotes efficient heat transfer from electronic components to the heat sink
• Non-curing for service and long-term use
• Non-corrosive to common substrates in electronics
• Good thixotropy for easy application and even spreading

Ideal for

• CPU, GPU and power semiconductors
• LED modules and power LED applications with heat sink
• Power converters, power supplies and industrial electronics
• Service replacement of thermal paste and prototype assembly

Package contents

• 1x Shin-Etsu X-23-7921-5 Thermal paste, 5 g (syringe)

Why choose this product?

• Defined parameters for thermal interface design (thermal conductivity, thermal resistance, viscosity)
• Stable properties within the specified operating temperature range
• Suitable for applications where low oil separation rates and low volatility are required

Installation and operating instructions

• Before application, clean the contact surfaces from dust, grease and remnants of the original material.
• Apply a thin, continuous layer and use the pressure of the cooler to ensure even distribution
• Remove excess material with a soft cloth.
• Store in a closed container; after opening, consume within a reasonable time according to storage and handling conditions.

Safety notice

• Avoid contact with eyes and prolonged contact with skin; wash hands after handling.
• Keep out of reach of children.
• Do not use on surfaces where contamination of optical or contact surfaces could occur.
