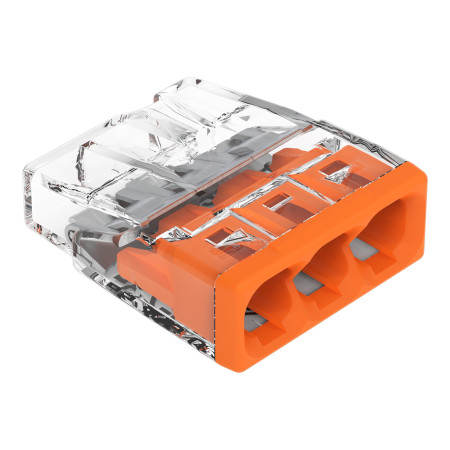

Connection clamp WAGO PUSH WIRE 2273-203

The WAGO 2273-203 is a compact 3-way connector for connecting solid copper conductors in junction boxes and other electrical installation applications. The push-in design allows for quick and direct insertion of the conductor without screwing. The transparent body makes it easy to visually inspect the conductor insertion.

Technical specifications

• Manufacturer: WAGO
• Model: 2273-203
• Series: 2273 COMPACT PUSH WIRE
• Product type: junction box connector
• Number of trips: 3
• Rated current: 24 A
• Rated voltage: 450 V
• Wire cross-section: 2.5 mm2
• Wire size: 16 AWG, 20 AWG
• Mounting type: cable
• Termination type: push-in wire
• Contact material: copper
• Color: orange, clear
• Maximum operating temperature: 60 °C
• Encapsulated: yes
• Insured: no
• Hazardous area certification: no

Functions and features

• Compact design for use in installation and distribution boxes.
• Push-in conductor connection without screw terminals.
• Transparent housing for checking correct insertion of the wire.
• 3 separate inputs for connecting three wires.
• Insulated connector body for electrical installation.

Ideal for

• Connecting wires in domestic and industrial electrical installations.
• For use in junction and installation boxes.
• Quick and clear connection of solid copper conductors.

Package contents

• WAGO 2273-203 connector

Why choose this product?

• Clearly identified WAGO catalog number 2273-203.
• Compact design suitable for limited installation space.
• The transparent body allows visual inspection of the wire connection.
• The push-in connection method simplifies assembly without screw connections.
• The technical parameters of 24 A and 450 V correspond to use in electrical installations within the scope of the product's intended use.

Installation and operating instructions

• Designed for conductors in the range and design corresponding to the product specification.
• Before inserting the wire, it is necessary to properly strip the insulation and check that the wire end is undamaged.
• After connection, it is advisable to visually verify the position of the wire through the transparent connector body.
• Carry out the installation only in accordance with the rules for electrical installations and with regard to the rated voltage and current of the product.

Safety notice

• The product is intended for electrical installations; incorrect connection may result in electric shock, short circuit or overheating of the connection.
• The circuit must be disconnected from power before assembly or disassembly.
• Installation at 450 V may only be carried out by a person with appropriate professional qualifications.
• Do not exceed the product's rated electrical and temperature parameters.
• Do not use a damaged connector or wires with damaged insulation or unsuitable design.
