CW2A-6A-T mains EMI filter, IEC C14 inlet with fuse
zoom_out_map
chevron_left chevron_right
New

Mains EMI filter with IEC C14 input and fuse CW2A, 6A / 250VAC

7.86 €

7.86 € excl. VAT

7.857826 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

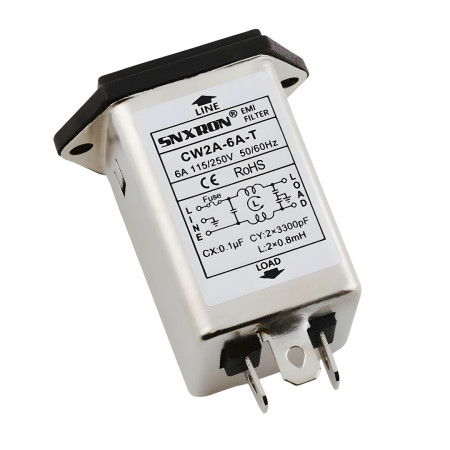

Single-phase mains EMI filter with integrated IEC socket (C14) and fuse protection is designed to suppress high-frequency interference at the power input of equipment. It is used as an input power module in a panel, where it simplifies the network connection and at the same time limits the propagation of interference between the network and the connected equipment.

Technical specifications

  • Type: mains EMI filter with IEC input (IEC Socket Power Filter)
  • Phase: single-phase
  • Model: CW2A-XX-T
  • Rated current: 1A, 3A, 6A, 10A (depending on variant)
  • Rated AC voltage: 115/250VAC
  • Rated network frequency: 50/60Hz
  • Climate category: 25/085/21
  • Operating temperature: -25 to +85 °C
  • Construction: nickel-plated metal casing
  • Mounting: in panel, mounting hole fixing
  • Certification: CE, RoHS

Functions and features

  • Integrated IEC C14 input for powering devices from the mains
  • EMI/RFI filtering to suppress interference in common industrial and laboratory environments
  • Fuse protection integrated in the module (“With a Fuse” version)
  • Suitable for reducing interference in both common-mode and differential-mode modes (typical connection of network EMI filters)
  • Panel design for quick integration into cabinets and devices

Ideal for

  • Power inputs for measuring equipment and test equipment
  • Industrial devices and control units with mains power supply
  • Audio/video equipment and devices sensitive to interference
  • Equipment requiring improved EMC performance on the mains lead

Package contents

  • 1× mains EMI filter with IEC C14 input, version with fuse (CW2A-6A-T)

Why choose this product?

  • Combines IEC mains input and EMI filtering in one panel module
  • Integrated fuse simplifies input power protection design
  • Metal shielded housing supports stable performance and emission control
  • Standard panel mounting with mounting holes

Installation and operating instructions

  • Install in a conductive (grounded) panel/cabinet for proper filtration and shielding function.
  • Observe the correct connection of the terminals: input (LINE) from the network and output (LOAD) to the device.
  • Connect the PE conductor to the protective earth of the device; proper earthing is essential for the effectiveness of the EMI filter.
  • When selecting a fuse, use the appropriate type and value according to the requirements of your application and the supply protection.

Safety notice

  • The product is designed to operate with a mains voltage of up to 250VAC. Improper installation may result in electric shock or fire.
  • Installation and connection may only be carried out by a qualified person with the power supply disconnected.
  • Ensure adequate shielding and strain relief for the supply wires according to the device design.
OEM
AM3395-6-A
85044090
Rated voltage
115/250 V AC
Connector
Faston 6.3 mm
Frequency
50-60 Hz
Operating temperature
-25 až +85 °C
