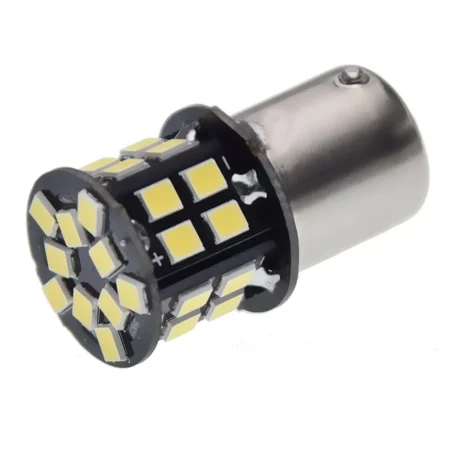

LED bulb BA15S 6 V DC white, 30xSMD 2835

The LED bulb with BA15S base is intended as a replacement for a single filament bulb in 6 V DC electrical systems. It is suitable for use in vintage vehicles, especially for marker or position lights. A negative ground is required for proper operation.

Technical specifications

• Base: BA15S
• Power supply: 6V DC
• Light color: white
• Number of LEDs: 30
• LED type: SMD
• Beam angle: 360°
• Luminous intensity: 450–500 lm
• Current: 0.4A
• Protection: IP22
• Lifespan: 50,000 hours
• Designed for single filament light sources
• Vehicle connection requirement: negative ground

Functions and features

• Replacement for classic bulb with BA15S base in 6 V DC systems.
• Light emitted over a wide area thanks to the arrangement of LEDs around the perimeter and on the front side.
• The filament-free LED design increases resistance to shock and frequent switching.
• Lower current consumption compared to classic bulbs of the same base.
• Suitable for vehicles where classic bulbs frequently crack.

Ideal for

• Historic vehicles with 6 V DC on-board voltage
• Side lights
• Position lights
• Passenger cars, vans and motorcycles with 6 V DC system and negative ground

Package contents

• 1 pc LED bulb BA15S 6 V DC white

Why choose this product?

• It corresponds to the BA15S socket and the voltage is 6 V DC.
• It is designed for single-strand applications in vehicles.
• It offers a wide 360° lighting angle.
• It is suitable for installations where white light and low current consumption are required.
• It respects the specific requirements of older vehicles with a minus frame.

Installation and operating instructions

• Before installation, verify the conformity of the BA15S socket and the 6 V DC supply voltage.
• Designed for vehicles with a negative ground. If the polarity is different, the bulb will not work properly.
• Before replacing, turn off the power and let the original light source cool down.
• After installation, check the correct function in the luminaire and the mechanical fit in the base.

Safety notice

• Incorrect polarity connection or use in a different voltage system may result in damage to the bulb or the vehicle's electrical system.
• Use the product only in a 6 V DC electrical system.
• Do not install in a damaged or corroded socket.
• Avoid shorting the contacts during assembly.
