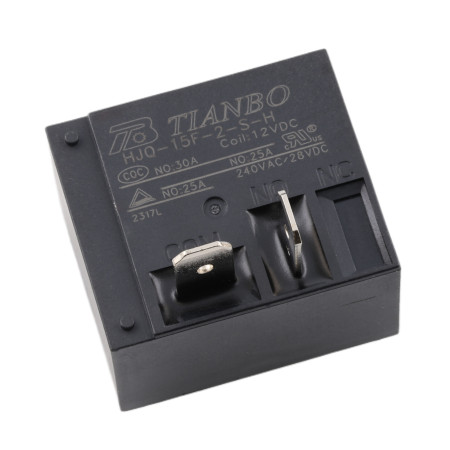

Relay HJQ-15F-2-SH, 12V, 25A, IP65
zoom_out_map
chevron_left chevron_right

Relay HJQ-15F-2-SH, 12V DC/250V AC 25A

2.39 € Tax included

2.39 € excl. VAT

2.391512 Tax excluded

i
The applied VAT rate is 0% for the country United Kingdom.
check In stock
Download PDF

Fully encapsulated industrial quality relay.

Maximum contact current: 25A
Maximum contact voltage: 240V AC/28V DC
Consumption: 0.8W
Coil resistance: 400Ω
Coil voltage: 12V DC

Dimensions: 23x16.1x10.2mm

OEM
AM9709
85364190
Voltage
12 V DC
Waterproof grade
IP65
Number of pins
4-pin
Max. switching current
25 A
Max. switching voltage
240V AC /28 V DC
Contact type
SPST-NO
