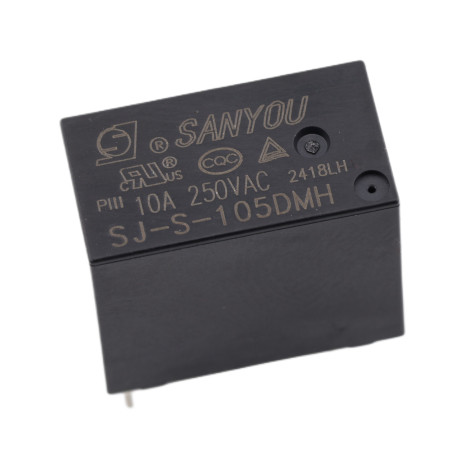

Relay SJ-S-105DMH, 5V DC/250V AC 10A

2.39 €

2.39 € excl. VAT

2.391512 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Fully encapsulated industrial quality relay.

Maximum contact current: 10A
Maximum contact voltage: 277V AC
Consumption: 0.45W
Coil resistance: 55Ω
Coil voltage: 5V

Dimensions: 18.4x10.2x15.5mm

OEM
AM8855
85364190
Voltage
5 V DC
Waterproof grade
IP65
Number of pins
4-pin
Max. switching current
10 A
Max. switching voltage
265V AC /30 V DC
Contact type
SPST-NO

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
