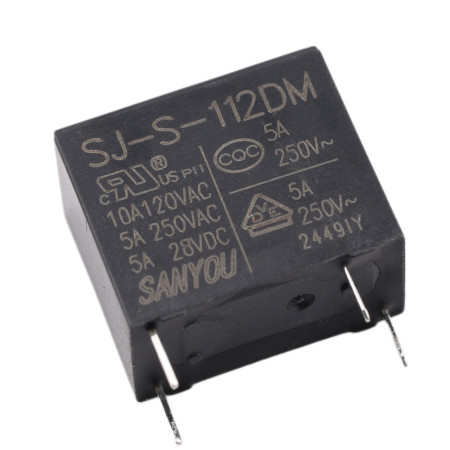

Relay SJ-S-112DM, 12V DC, 5A, 4-pin, IP65
zoom_out_map
chevron_left chevron_right

Relay SJ-S-112DM, 12V DC/250V AC 5A

2.39 €

2.39 € excl. VAT

2.391512 Tax excluded

i
The applied VAT rate is 0% for the country United States.
new_releases In stock at supplier
Download PDF

Fully encapsulated industrial quality relay.

Maximum contact current: 5A
Maximum contact voltage: 277V AC
Consumption: 0.45W
Coil resistance: 320Ω
Coil voltage: 12V

Dimensions: 18.4x10.2x15.5mm

OEM
AM0037
85364190
Voltage
12 V DC
Waterproof grade
IP65
Number of pins
4-pin
Max. switching current
5 A
Max. switching voltage
277V AC /30 V DC
Contact type
SPST-NO

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
