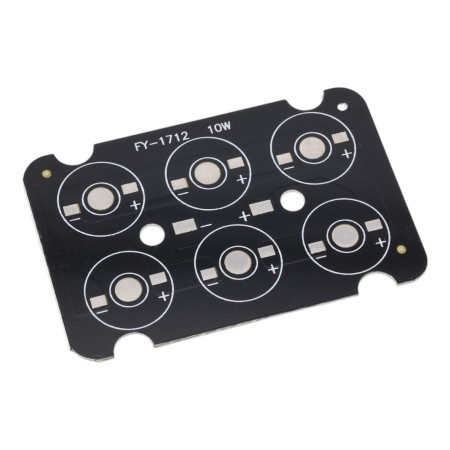

Aluminum printed circuit board (PCB) for 6 LEDs, 6/18W, black

This aluminum plate is designed for mounting up to 6 high-power SMD LEDs 1W/3W connected in series. Thanks to the high-quality aluminum core, it ensures effective heat dissipation and long service life of the connected LED chips. Ideal for designing your own LED fixtures, spotlights or light panels.

Technical specifications

• Type: Aluminum plate for 6 LEDs
• Material: Aluminum PCB (MCPCB)
• Number of positions: 6 × 1 W / 3 W LED
• Connection: Serial
• Dimensions: 86 mm (length) × 59 mm (width)
• Color: Black surface with + and − markings
• Maximum power: 10W
• Compatibility: SMD LED 1 W / 3 W

Functions and features

• Efficient cooling thanks to aluminum core
• Clear marking of + / − poles for easy installation
• Precise distribution of 6 LED positions for even illumination
• Universal hole spacing for mounting in reflectors or brackets
• Suitable for direct soldering of LEDs without an intermediate board

Ideal for

• DIY production of LED lamps and spotlights
• Lighting of work areas, aquariums or display cases
• Laboratory and technical projects with power LEDs
• Replacement or service applications of LED modules

Package contents

• 1 × Aluminum PCB board for 6 LEDs (LED not included)

Why choose this product?

• High quality and long service life thanks to the aluminum core
• Easy to install and compatible with common power LEDs
• Ideal solution for efficient cooling and stable LED operation
• Good price/performance ratio for do-it-yourself projects
