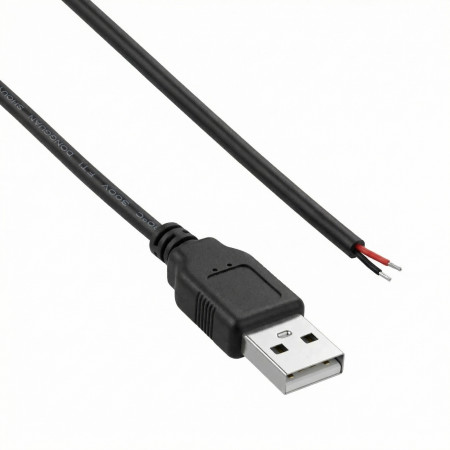

USB-A power cable 2pin, 100 cm

The power cable with a USB-A 2.0 connector on one side and two free wires on the other side is used to supply DC power to a device or module with a direct wire connection. The 100 cm version is available in white and black. The cable is suitable for power applications where a simple connection from a USB port to two wires without data communication is required.

Technical specifications

• Connector: USB-A male
• Connector standard: USB 2.0
• Cable length: 100 cm
• Number of wires: 2
• Wire color: red and black
• Cable sheath color: white or black
• Output type: loose wires without terminations
• Designation: power cable for DC power supply
• Rated voltage: max. 24 V
• Conductor material indicated on the base: tinned copper
• Insulation material indicated on the base: PVC
• Current: max. 2 A (24V) max. 6A (5V)
• Polarity marking in the picture: red wire positive, black wire negative

Functions and features

• The USB-A connector allows power connection from a compatible USB source or port.
• Two separate output wires are designed for direct connection to a device, terminal block or power input.
• The cable is intended for power transmission, not data connection.
• The PVC sheath ensures mechanical protection of the conductors and flexibility of the cable.
• Available in two color options, it can be matched to the installation or device.

Ideal for

• Powering smaller DC devices from a USB source
• LED applications and lighting elements powered by DC voltage
• CCTV accessories
• Small fans and small electronic devices
• Service, development and assembly use

Package contents

• 1x USB-A power cable with two free wires, length 100 cm

Why choose this product?

• A simple solution for converting from a USB-A connector to a two-wire power supply.
• The 100 cm length provides a greater installation reach than short jumpers.
• Loose wires allow you to customize the termination method to suit your specific application.
• Both white and black versions are available for different types of installations.

Installation and operating instructions

• Before connecting, verify the polarity of the wires and the requirements of the powered device.
• Only use the cable to power the device with the appropriate DC voltage.
• The free ends of the wires must be properly insulated or terminated in a suitable manner during assembly.
• Connect only to a source that matches the required voltage and current draw of the device.

Safety notice

• Incorrect polarity connection may cause damage to the powered device.
• Uninsulated, loose conductors must not come into contact with each other, as there is a risk of a short circuit.
• Do not use a cable with damaged insulation, connector, or wires.
• Perform installation and connection with the power disconnected.
• If the cable is integrated into the device or fixed installation, the connection should be made by a person with appropriate expertise.
