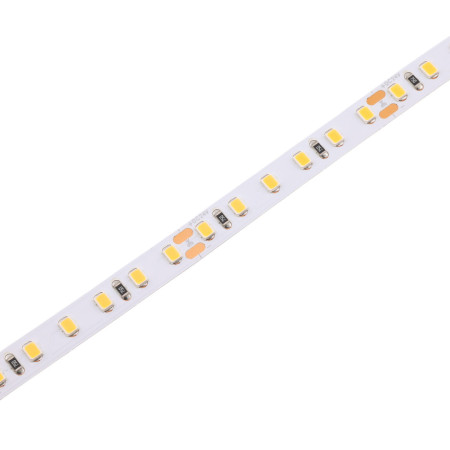

LED Strip 2835 120LED/m, 18W/m, 24V, CRI80

Universal LED strip with a density of 120 LEDs/m provides balanced brightness and very uniform light for decorative and functional lighting. 24 V power supply, high-quality 8 mm PCB with 2 oz copper and original 3M 9495LE adhesive layer guarantee stable performance, reliable installation and long service life. Supplier-verified 5-year warranty.

Technical specifications

• Chip type: SMD 2835
• Density: 120 LEDs/m
• Power supply: DC 24 V
• Light output: 18 W/m
• Luminous flux: 1650–1750 lm/m
• CRI: Ra > 80
• Cuttable: every 50 mm (6 LEDs)
• PCB width: 8mm, 2oz copper
• Protection: IP20 (interior)
• Operating temperature: −25 °C to +65 °C
• Adhesive layer: 3M 9495LE
• Lifespan: up to 50,000 h

Functions and features

• The high density of LEDs promotes a more uniform light line.
• The 24 V DC power supply contributes to lower voltage drops over longer distances compared to lower voltages.
• The strip is suitable for dimming via PWM when using a compatible 24 V system.
• The underside is provided with a self-adhesive layer for mounting on a suitable substrate.
• The 50 mm division makes it easy to adjust the installation length.
• The IP20 version is intended for indoor dry areas.

Ideal for

• Backlighting of kitchen cabinets, shelves and furniture.
• Linear lighting in aluminum profiles.
• Showcases, shelves and shop windows.
• Accent and supplementary lighting in the interior.
• Commercial and design lighting installations in dry environments.

Package contents

• 1 m LED strip SMD 2835, 120 LEDs

Why choose this product?

• It combines 24 V DC power supply, 120 LED/m density and 18 W/m power consumption for linear lighting applications.
• Allows precise shortening in 50 mm increments.
• The 8 mm width makes it easy to use in narrower profiles and installation spaces.
• 2 oz copper PCB supports stable electrical and thermal properties.
• The integrated adhesive layer simplifies installation on a prepared surface.

Installation and operating instructions

• For power supply, use a 24 V DC source with adequate power reserve.
• Install on a clean, dry and thermally suitable surface.
• For longer service life and better heat dissipation, mounting in an aluminum profile is suitable.
• Shorten the tape only at the marked dividing points.
• The product is intended for indoor use in dry environments.

Safety notice

• Incorrect connection may cause damage to the tape or power supply.
• The product is not intended for direct connection to a 230 V mains voltage.
• Perform installation with the power disconnected.
• Due to the power consumption of the tape, it is necessary to ensure sufficient heat dissipation by installing it in an aluminum profile.
• Professional installation is suitable for assembling longer assemblies or if there is uncertainty about the connection.
