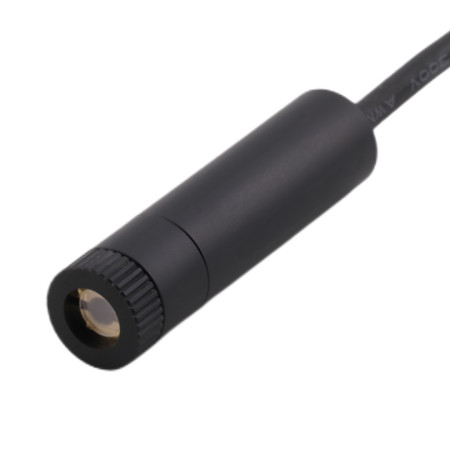

Laser module red 635nm, 12x45mm, grid 10x10

The powerful red laser module with diffraction grating (DOE) produces a precise 10x10 grid, which is ideal for measurement, alignment, positioning and visual projections. The robust metal body, stable 5V power supply and long life make this module a reliable solution for professional industrial and creative applications.

Technical specifications

• Dimensions: 12 mm (Ø) × 45 mm (length)
• Wavelength: 635 nm (red light)
• Power: 50 mW, 100 mW, 200 mW (depending on variant)
• Operating voltage: 5V DC
• Laser pattern: DOE – 10×10 Grid
• Body material: aluminum/brass
• Lens: PMMA
• Operating temperature: −10 °C to +40 °C
• Storage temperature: −40 °C to +85 °C
• MTTF: > 8,000 hrs
• Connector: 1 m cable with DC 5.5 × 2.1 mm
• Protection: IP50 (suitable for indoor use)
• Weight: 35g

Functions and features

• Diffraction optics create a precise and uniform 10×10 laser grating.
• High luminosity suitable for demanding industrial applications.
• 5V power supply allows easy integration into most devices.
• The metal body ensures good thermal stability and long service life.
• Stable output thanks to integrated APC/ACC control.

Ideal for

• Alignment and positioning in production.
• Machine processing of wood, metals and other materials.
• Optical effects, stage use and projection systems.
• Measurement, surface marking and visual guidance.
• Positioning in robotics and automation.

Package contents

• Laser module 12×45 mm – DOE 10×10 grating

Why choose this product?

• High-precision DOE optics for high-quality grating projection.
• Performance variants for different visibility levels and environments.
• Robust construction and long service life.
• Easy integration into industrial equipment and your own projects.
• An ideal choice for precise measurement, positioning or visual highlighting.
