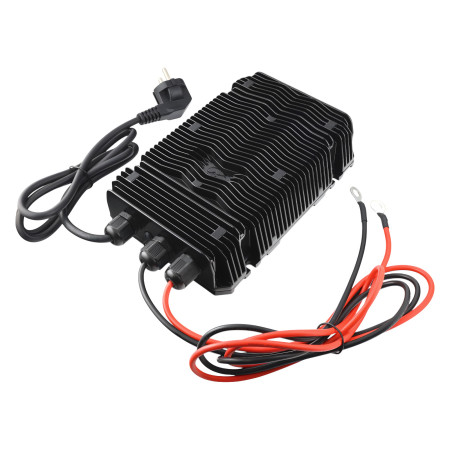

Waterproof lithium battery charger 58.4V 600W

Professional AC/DC charger WG-48C600S designed for lithium batteries (LiFePO4, LiMn2O4). It offers an output voltage of 58.4V and a power of 600W with a high efficiency of up to 96%. Thanks to its robust, waterproof and dustproof design (IP65), it is suitable for use in e-bikes, scooters, boats, electric cars and other applications. The charger uses an intelligent CC/CV charging curve and provides a complete set of protections for maximum battery safety.

Technical specifications

• Model: WG-48C600S
• Battery type: LiFePO4, LiMn2O4
• Input voltage: 90–265V AC, 50/60Hz
• Output voltage: 58.4V ±0.2V DC
• Output current: 10A ±3% (constant)
• Output power: 600W
• Charging mode: CC/CV (without trickle charging)
• Efficiency: 94–96% at 230V / 92–94% at 110V
• Power factor: PF>0.98 (115V), PF>0.95 (230V)
• Distortion and noise: ≤400 mVp-p
• Working temperature: -40°C to +60°C
• Waterproof: IP65
• Dimensions: 190 × 145 × 40 mm
• Weight: ≤2.1kg
• Cables: input 1 m plug, output 1 m red/black
• Cooling: natural convection (without fan)
• Lifespan (MTBF): ≥100,000 hours

Functions and features

• Intelligent CC/CV charging for lithium batteries
• Full charging current and efficiency up to 95%
• Protection against short circuit, overvoltage, overload and overheating
• Automatic recovery after overload
• Backflow protection
• LED status indicator (red = charging, green = fully charged)
• Waterproof, dustproof and shockproof design
• Natural cooling – quiet operation
• Safety standards: GB4943/EN60950
• EMC: CE & RE EN55022-Class B, EN/IEC 61000-4-2/3/6

Ideal for

• Electric bikes and electric scooters
• Electric motorcycles and quads
• Caravans and motorhomes (RVs)
• Boats and ships
• Industrial and solar applications

Package contents

• Charger WG-48C600S 58.4V 600W
• Packaging in a cardboard box

Why choose this product?

• Optimized for lithium batteries (LiFePO4, LiMn2O4)
• Advanced protection and high efficiency
• IP65 – water and dust resistance
• Reliable operation even at -40 °C
• Compact dimensions and low weight
• LED indication for easy monitoring of charging
• Long service life (MTBF ≥100,000 h)
