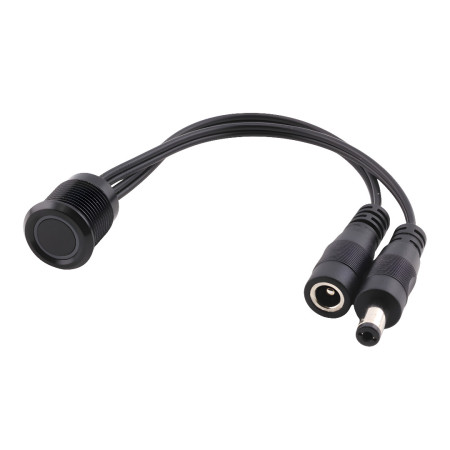

Touch LED dimmer DIM-1-B, 12-24 V DC, 6A - black

The DIM-1-B touch LED dimmer in black is an elegant control element for smooth brightness control of LED strips and LED luminaires powered by 12 V or 24 V DC. A short touch turns the light on or off, a long hold adjusts the brightness in the range of 5–100%. Thanks to its flush mounting and discreet backlit ring, it is an ideal choice for modern interiors, furniture and architectural lighting.

Technical specifications

• Model: DIM-1-B
• Device type: Touch LED dimmer
• Supply voltage: DC 12-24 V
• Maximum output current: 6 A
• Maximum power: 72 W at 12 V / 144 W at 24 V
• Number of channels: 1
• Control type: PWM
• Control: Capacitive touch
• Backlight: blue
• Function: ON/OFF and brightness control
• Connectors: DC jack 5.5 × 2.1 mm (input and output)
• Mounting hole diameter: 16 mm
• Front button diameter: 17.8 mm
• Cable length: 185 mm
• Material: Metal body with black finish
• Degree of protection: IP20
• Weight: 25g
• Certification: CE, RoHS

Functions and features

• Short touch to turn the lighting on or off
• Long touch for smooth dimming of LED strips
• Brightness control range 5-100%
• Backlit touch ring for easy navigation in the dark
• Memory of the last set brightness level
• Recessed mounting in furniture or panel
• Silent operation without mechanical parts

Ideal for

• LED strips in kitchen units
• Furniture and shelf lighting
• Showcases and shelving systems
• Bedroom and night lighting
• Design and architectural LED installations

Package contents

• 1× touch LED dimmer DIM-1-B (black)

Why choose this product?

• Elegant black metal design
• High load capacity up to 6 A
• Compatible with both 12 V and 24 V LED systems
• Simple connection using DC connectors
• Modern and comfortable way to control LED lighting
