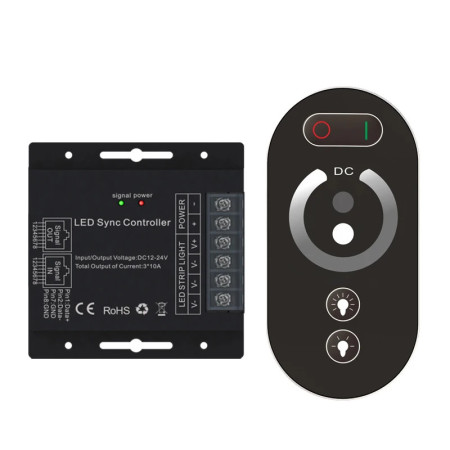

Wireless single-color LED controller, 12–24V, with RJ45 synchronization

Advanced 3-channel single-color LED controller with wireless RF control allows independent control of single-color LED strips. Suitable for LED strips, modules or constant voltage light chains. Thanks to the integrated RJ45 interface, it supports synchronization of multiple units in large installations.

Technical specifications

• Supply voltage: DC 12V–24V (wide range)
• Output power: 12V: ≤360W, 24V: ≤720W
• Output: 3 channels (only one color)
• Output current: ≤10A per channel
• Connection type: common anode
• Color scale: 256 levels
• Speed levels: 100 levels
• PWM frequency: 400Hz
• Standby power consumption: <1 W
• Operating temperature: -20 to 60 °C
• Dimensions: 91 × 88 × 24 mm
• Net weight: 180g
• Remote control frequency: 433.92 MHz
• RF control range: ≤20 m
• Controller power supply: 3x AAA, 1.5V
• Synchronization network length (RJ45): max. 80 m between units
• Number of modes: 18 (7 static, 11 dynamic)

Functions and features

• Wireless RF control with touch wheel and continuous regulation
• Memory of last setting after power failure
• Modes: dimming, strobe, etc.
• Possibility to continuously hold buttons to control speed or brightness
• Seamless synchronization of multiple units via RJ45 network
• No directional control – works even through obstacles

Ideal for

• Single-color LED strips, LED modules and light chains
• Interior lighting, decorations and furniture
• Architectural projects with multiple zones
• Synchronous lighting of shop windows, hotels, halls, stage lighting

Package contents

• 1× LED controller with RJ45 synchronization
• 1× touch RF remote control (without batteries)
• 1× instruction manual
