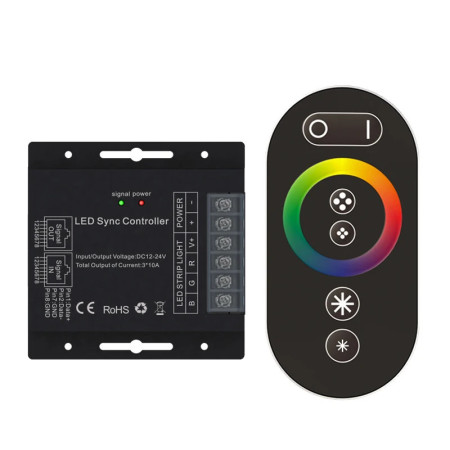

Wireless RGB LED controller, 12–24V, with RJ45 synchronization

32.32 €

32.32 € Tax excluded

32.32 € without VAT i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Advanced 3-channel RGB LED controller with wireless RF control allows for independent RGB control. Suitable for LED strips, modules or constant voltage light chains. Thanks to the integrated RJ45 interface, it supports synchronization of multiple units in large installations.

Technical specifications

  • Supply voltage: DC 12V–24V (wide range)
  • Output power: 12V: ≤360W, 24V: ≤720W
  • Output: 3 channels (RGB)
  • Output current: ≤10A per channel
  • Connection type: common anode
  • Color scale: 256 levels
  • Speed levels: 100 levels
  • PWM frequency: 400Hz
  • Standby power consumption: <1 W
  • Operating temperature: -20 to 60 °C
  • Dimensions: 91 × 88 × 24 mm
  • Net weight: 180g
  • Remote control frequency: 433.92 MHz
  • RF control range: ≤20 m
  • Controller power supply: 3x AAA, 1.5V
  • Synchronization network length (RJ45): max. 80 m between units
  • Number of modes: 18 (7 static, 11 dynamic)

Functions and features

  • Wireless RF control with touch wheel and continuous regulation
  • Memory of last setting after power failure
  • Modes: static colors, smooth fades, jump transitions, strobe, etc.
  • Possibility to continuously hold buttons to control speed or brightness
  • Seamless synchronization of multiple units via RJ45 network
  • No directional control – works even through obstacles

Ideal for

  • RGB LED strips, LED modules and light chains
  • Interior lighting, decorations and furniture
  • Architectural projects with multiple zones
  • Synchronous lighting of shop windows, hotels, halls, stage lighting

Package contents

  • 1× LED controller with RJ45 synchronization
  • 1× touch RF remote control (without batteries)
  • 1× instruction manual
OEM
AM0058
Voltage
12-24 V DC
Waterproof grade
IP22
