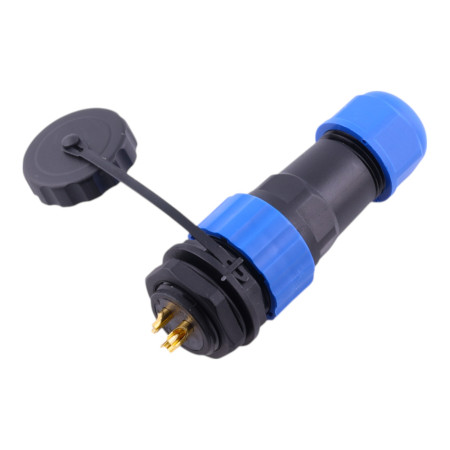

SP20 panel mount, IP68 waterproof cable connector

Waterproof docking connector for wires with a diameter of 8 - 12mm. Gold-plated contacts.

Number of pins:

5.84 € Tax included

5.84 € excl. VAT

5.842123 Tax excluded

On the way

Quantity:

Download PDF

Waterproof docking connector for wires with a diameter of 8 - 12mm. Gold-plated contacts.

Type: SP20	2-pin	3-pin	4-pin	5-pin	6-pin	7-pin	9-pin	10-pin	12-pin	14-pin
Contact diameter	2.8mm	2.8mm	2.8mm	2.8mm	1.8mm	1.8mm	1mm	1mm	1mm	1mm
Rated current	25A	25A	25A	25A	10A	10A	5A	5A	5A	5A
Rated voltage	250V	250V	250V	250V	250V	250V	250V	250V	250V	250V
Contact resistance	1mΩ	1mΩ	1mΩ	1mΩ	2mΩ	2mΩ	5mΩ	5mΩ	5mΩ	5mΩ
Insulation resistance	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ	2000mΩ
Max. conductor cross-section	^≤6.15mm2	^≤6.15mm2	^≤6.15mm2	^≤6.15mm2	≤2.54mm ²	≤2.54mm ²	^≤0.78mm2	^≤0.78mm2	^≤0.78mm2	^≤0.78mm2
