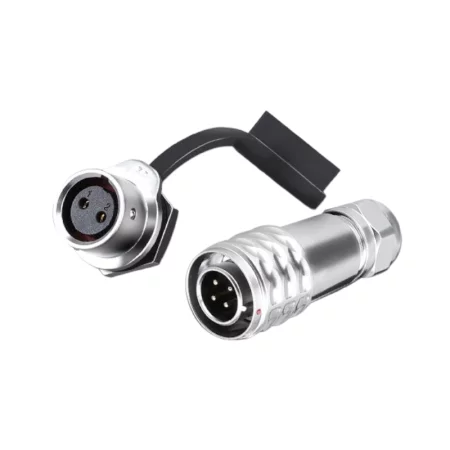

SF20 Waterproof Metal Docking Connector IP67
zoom_out_map
chevron_left chevron_right

SF20 metal panel connector, set, IP67

Waterproof docking connector for wires with a diameter of 4 - 6.5mm. Set male (SF2011/P) + female SF2012/S).

19.51 €

19.51 € excl. VAT

19.507908 Tax excluded

i
The applied VAT rate is 0% for the country United States.
new_releases In stock at supplier
Download PDF

Waterproof docking connector for wires with a diameter of 4 - 6.5mm. Bayonet design. Gold-plated contacts.

Mounting hole diameter: 12mm

Protection: IP67

Insulation resistance: 2000 mΩ

Working temperature: -25 - 85°C

Relative humidity: 90% - 95%

Material: Metal (brass with nickel plating)

Insert material: PPS (max. 260°C)

The package includes a male and a female

Weight: 49g

Type: SF16 2-pin 3-pin 4-pin 5-pin 6-pin 7-pin 9-pin
Contact diameter 1.6mm 1.6mm 1mm 1mm 1mm 1mm 0.8mm
Max. current 13A 13A 5A 5A 5A 5A 3A
Max voltage 250V 250V 200V 180V 125V 125V 125V
Max. cable cross-section 2mm 2 2mm 2 0.75mm 2 0.75mm 2 0.75mm 2 0.75mm 2 0.75mm 2
WEIPU
AM8106-2-PI
85369010
Color
Silver
Waterproof grade
IP67
Mounting hole
12 mm

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
