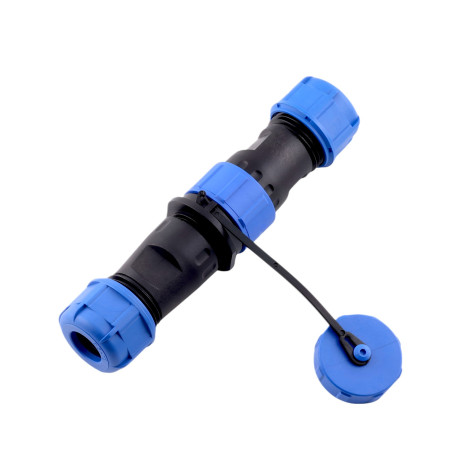

SP1710/SP1711 Waterproof Cable Connector IP68
zoom_out_map
chevron_left chevron_right

SP1710/SP1711, IP68 waterproof cable connector

Waterproof docking connector for wires with a diameter of 5 - 10mm. Gold-plated contacts.

5.50 € Tax included

5.50 € excl. VAT

5.500479 Tax excluded

i
The applied VAT rate is 0% for the country United Kingdom.
check In stock
Download PDF

Waterproof docking connector for wires with a diameter of 5 - 10mm. Gold-plated contacts.

Type: SP1710/SP1712 2-pin 3-pin 4-pin 5-pin 7-pin 9-pin
Contact diameter 1.5mm 1.5mm 1mm 1mm 1mm 1mm
Maximum current 10A 10A 10A 10A 10A 10A
Maximum voltage 500V 500V 500V 500V 400V 400V
Contact resistance 2.5mΩ 2.5mΩ 5mΩ 5mΩ 5mΩ 5mΩ
Max. conductor cross-section 2mm 2 2mm 2 0.785mm 2 0.785mm 2 0.785mm 2 0.785mm 2

Protection: IP68

Working temperature: -35 - 110°C

Relative humidity: 90% - 95%

Material: Polyamide

Package contents: 1x cable socket (female), 1x cable connector (male)

OEM
AM6634-2-PI
85369010
Housing material
Plastic
Waterproof grade
IP68
Construction
By soldering

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
