SP13 Panel Mount IP68 Waterproof Connector - Multi-Pin Options
zoom_out_map
chevron_left chevron_right

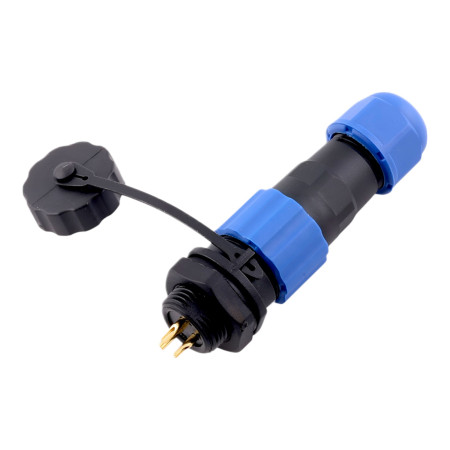

SP13 panel mount, IP68 waterproof cable connector

Waterproof panel connector for conductors with a diameter of 4 - 6.5mm. Gold plated contacts.

3.52 €

3.52 € excl. VAT

3.51894 Tax excluded

i
The applied VAT rate is 0% for the country United States.
check In stock
Download PDF

Waterproof panel connector for conductors with a diameter of 4 - 6.5mm. Gold plated contacts.

Type: SP13 1-pin 2-pin 3-pin 4-pin 5-pin 6-pin 7-pin
Diameter of contacts 2.8mm 1.8mm 1mm 1mm 1mm 1mm 1mm
Maximum current 10A 10A 5A 5A 5A 5A 5A
Maximum voltage 250V 250V 250V 250V 250V 250V 250V
Contact resistance 2mΩ 2mΩ 5mΩ 5mΩ 5mΩ 5mΩ 5mΩ
Max. conductor cross-section 6.15mm2 2.54mm2 2mm2 0.785mm2 0.785mm2 0.785mm2 0.785mm2



Protection: IP68

Operating temperature: -20 - 110°C

Relative humidity: 90% - 95%

Material: Polyamide

OEM
AM7967-2-PI
85369010
Voltage
250 V AC
Housing material
Plastic

EU Importer: AMPUL SYSTEM s.r.o., Čsl. armády 641/40, 78701 Šumperk, Czech Republic,
