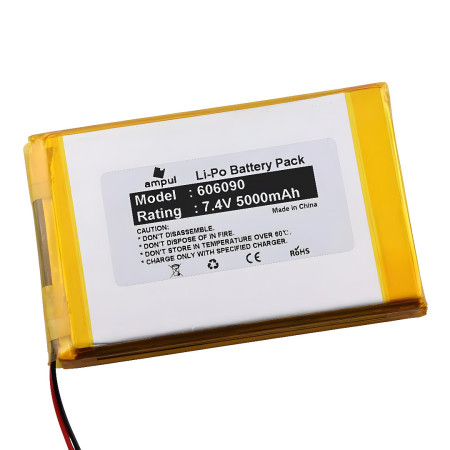

Li-Pol battery 5000mAh, 7.4V, 606090

Lithium-polymer (Li-Pol) rechargeable battery is designed to power portable electronic devices and applications where high capacity is required in a compact size. The design allows multiple cells to be assembled in series and used in battery packs.

Technical specifications

• Voltage: 7.4V
• Capacity: 5000mAh
• Capacity: 37Wh
• Charging voltage: 7.4-8.4 V DC
• Discharge current: 1C
• Number of charging cycles: 2000
• Minimal self-discharge (approx. 5% per month)
• Working temperature: -10 - 50°C
• Type designation: 606090
• Size: 90x60x12mm

Functions and features

• Li-Pol technology suitable for devices requiring higher energy density
• No memory effect during normal use
• Possibility of connecting multiple cells in series within battery packs
• Suitable for applications with consumption up to 1C

Ideal for

• Mobile electronics and portable devices
• Power battery packs for hobby and technical applications
• Devices requiring 7.4V (2S Li-Pol)

Package contents

• 1x Li-Po rechargeable battery 606090

Why choose this product?

• Clearly defined electrical parameters for power supply design (7.4 V / 5000 mAh / 37 Wh)
• Stable operating parameters in the range of -10 to 50 °C
• Low self-discharge suitable even for occasionally used devices

Installation and operating instructions

• Use a charger designed for Li-Pol batteries (2S) with a terminal voltage of 8.4 V.
• It is not recommended to discharge below 2.7 V per cell; if the voltage drops below 2.7 V, the battery may be irreversibly destroyed.
• Provide appropriate fuses and protection against overcharge, underdischarge and short circuit (BMS/protection circuit according to application)

Safety notice

• Do not short-circuit, mechanically damage or expose the battery to high temperatures.
• Charge only under supervision and in accordance with the requirements for Li-Pol cells.
• Improper use may cause overheating, battery damage, or fire.
