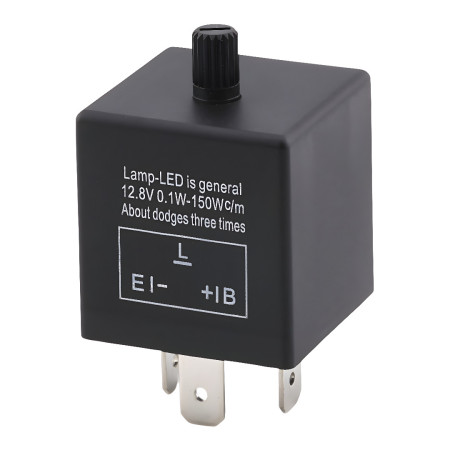

Relay interrupter for LED turn signals CF14KT JL-02, frequency adjustment

Electronic interrupter for LED turn signals with continuous frequency adjustment using the upper trimmer. Stabilizes flickering and eliminates rapid flickering after replacing classic bulbs with LEDs.

Technical specifications

• Power supply: 12 V DC or 24 V DC (depending on variant)
• Load: 0.1-150 W
• Adjustable frequency: approximately 60-120 cycles/min
• Number of pins: 3 (E−, L, B+)
• Body dimensions: 30.5 × 30.5 × 31 mm
• Height with controller: approx. 55 mm
• Operating temperature: −40 °C to +80 °C
• Housing: ABS plastic, plug-in mounting

Functions and features

• Eliminates rapid flashing of LED turn signals
• Continuous adjustment of the flashing speed with a rotary trimmer
• Compatible with LED, halogen and classic bulbs
• Stable frequency independent of load
• Easy Plug & Play installation

Ideal for

• Motorcycles, scooters and quads
• Passenger and commercial vehicles
• Replacement of older mechanical circuit breakers

Package contents

• 1 × relay interrupter CF14KT JL-02 (selected 12 V or 24 V variant)

Why choose this product?

• Universal use for 12 V and 24 V systems
• Frequency adjustment for perfect synchronization
• Reliable solution without the need for additional resistors
• Durable design and long service life
