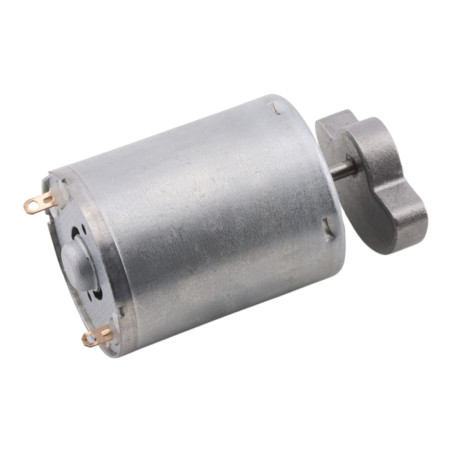

Vibration motor R370, D24mm

The compact R370 vibration motor is designed for applications requiring stable vibrations, such as small massage devices, model projects, sensors, warning systems or industrial construction. With a choice of 12V or 24V voltage and three speed options, it offers flexible use for a wide range of projects.

Technical specifications

• Supply voltage: 6V DC, 12V DC or 24V DC (depending on the selected variant)
• Rotation speed: 3000 RPM / 6000 RPM / 8500 RPM (depending on the selected variant)
• Motor type: Micro motor, permanent magnet
• Commutation: Brushed
• Construction: Fully enclosed
• Power: 3W
• Axis: Ø 2 mm
• Motor body dimensions: 30.8 × D24.4 mm
• Total length with eccentric weight: 42 mm
• Weight dimensions: Ø 24.4 mm, thickness 5 mm
• Efficiency: IE1
• Current load: Below 36V (manufacturing specification)
• Weight: 42g
• Protection: IP20

Functions and features

• Strong vibration effects thanks to eccentric weight
• Speed and voltage selection for optimal project adaptation
• Reliable design suitable for long-term operation
• Compact dimensions allowing integration into small devices
• Stable operation even at higher speeds

Ideal for

• Massage devices
• Vibrating alert systems
• Model making and DIY electronics
• Vibration sensor units
• Testing and laboratory equipment

Package contents

• 1× Vibration motor R370 with eccentric weight

Why choose this product?

• Wide choice of parameters – 12/24V and 3000–8500 RPM
• High reliability and quality workmanship
• Universal use in industrial, hobby and test applications
• Strong vibrations suitable even for more demanding projects
